Series-3100MP

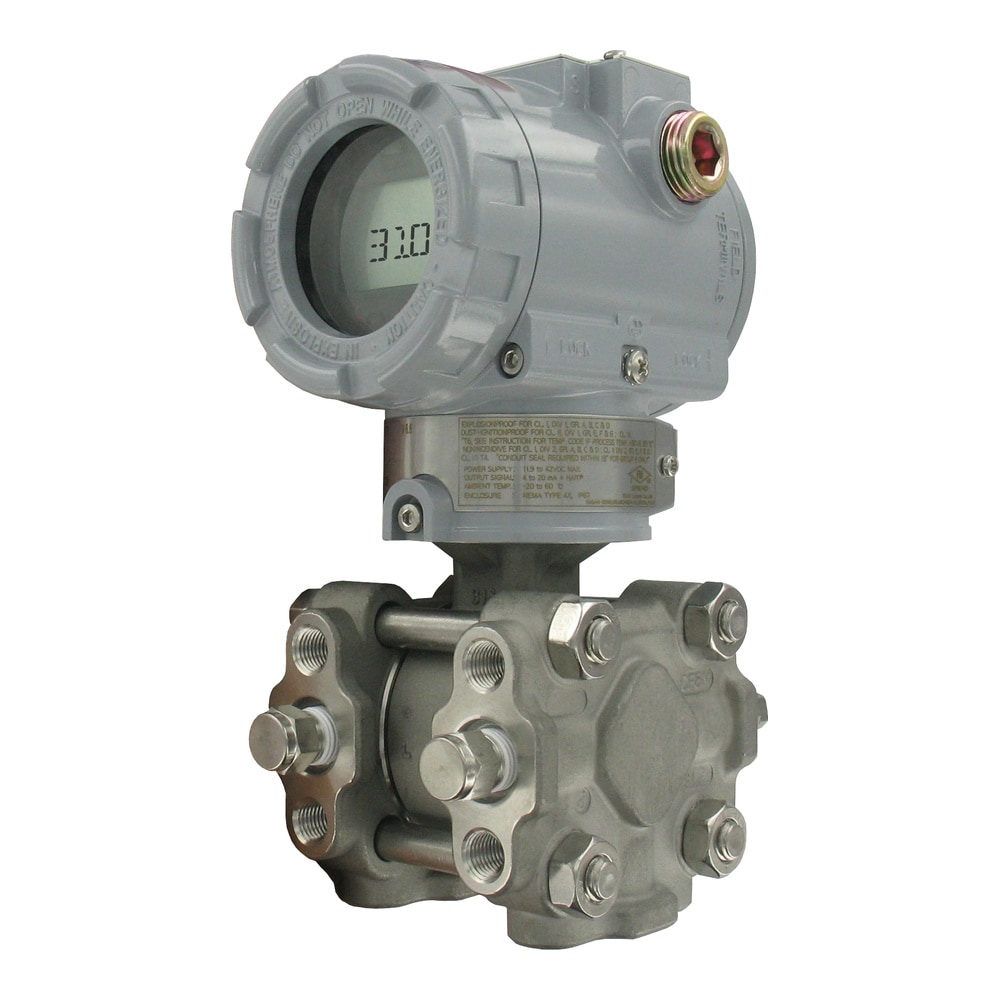

3100MP Smart Pressure Transmitter for Flow/Level, HART, Hazardous Locations
- Completely configurable using zero/span button (no calibrator required)
- Rangeability (100:1)
- Multiplanar
- Fits standard manifold valves
- Automatic sensor temperature compensation
- Easy installation
Series-3100MP
From
$
2,548.15
Can't find the right model?
Use our custom configurator to fine tune your product
Product Overview
- Accuracy ± 0.075 %
- Accuracy Detail ± 0.075% FS (@ 20°C)
- Burst Pressure 10,000 psi Maximum
- Compliance CE, FM
- Compliance Note CE, FM, ATEX option available (consult factory)
- Damping Time 0.25 to 60 s
- Electrical Connection 1/2 in NPT female Conduit with Screw Terminal block
- Electrical Output 4 to 20 mA, HART
- Enclosure Ratings Hazardous Location Rated, IP66, NEMA Type 4X
- Long Term Stability ± 0.125% FSO/year
- Loop Resistance Operation: 0 to 1500 Ω, HART® Communication: 250 to 500 Ω
- Materials, Wetted 316 Stainless Steel
- Media Compatibility Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Oxygen, Steam
- Output Detail HART® Communication
- Output Signal Current, HART
- Pressure Type Differential
- Process Connection Size 1/4 in
- Process Connection Type NPT Female
- Process Temperature, Max 120 °C
- Process Temperature, Min -40 °C
- Response Time 0.12 s
- Supply Power Type DC
- Supply Voltage 11.9 to 45 Vdc
- Thermal Effects ± 0.125% span/32°C
- Weight 3.9 kg

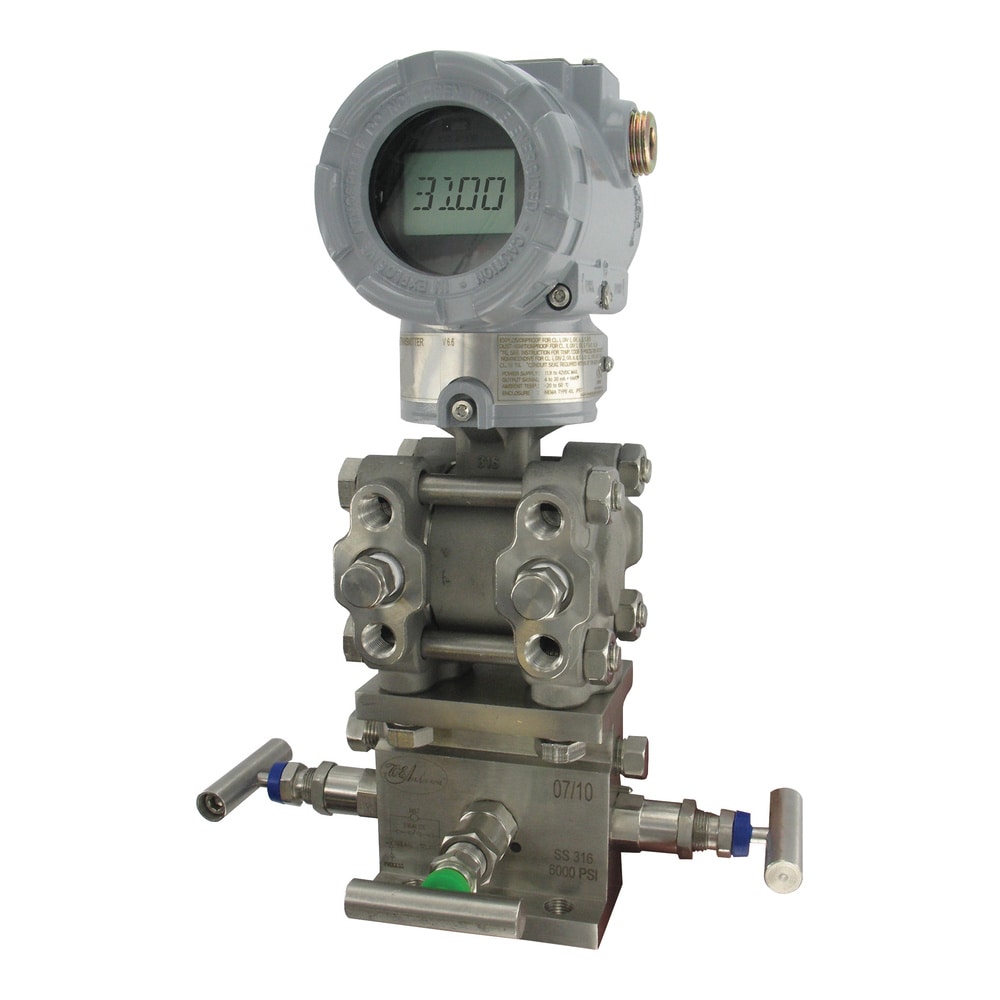

The Mercoid® Series 3100MP Multiplanar Smart Pressure Transmitter is a microprocessor-based high performance transmitter, which has flexible pressure calibration, push button configuration, and programmable using HART® Communication. The multiplanar design simplifies installation, saving operator time and money during set up. The 3100MP can be installed vertically without adaptors or brackets regardless of the process connection orientation. The multiplanar footprint fits standard manifold valves and averaging flow sensors. The Series 3100MP is capable of being configured for differential pressure or level applications with the zero and span buttons. A field calibrator is not required for configuration. The transmitter software compensates for thermal effects, improving performance. EEPROM stores configuration settings and stores sensor correction coefficients in the event of shutdowns or power loss. The Series 3100MP is FM or ATEX approved for use in hazardous (classified) locations. The 100:1 rangeability allows the smart transmitter to be configured to fit any application.
Product Applications
- Flow measurement
- Level monitoring
- Filter or pump differential pressure
- Critical process monitoring
