Series-SAE

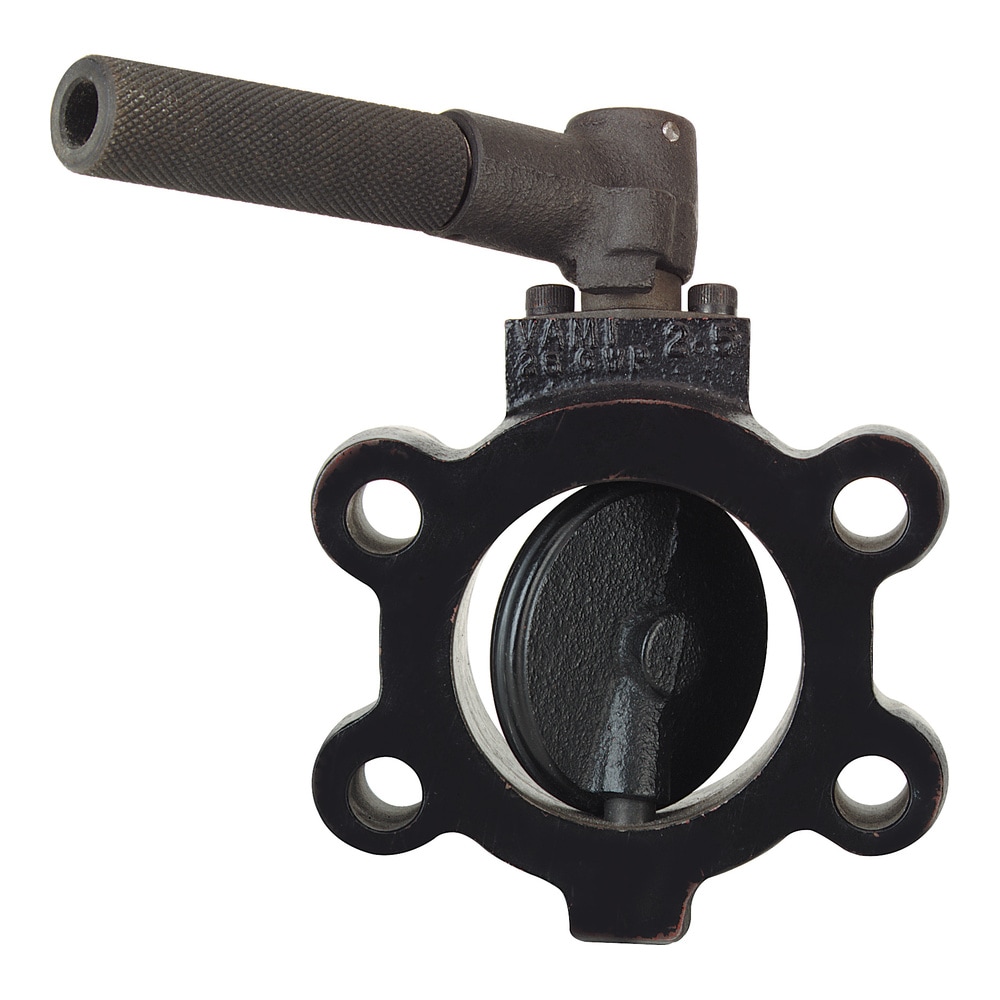

Butterfly Valves for Hydraulic Shut-off, 25 psi, O-ring Seal, Detent Lock
Series-SAE
From
$
394.75
Product Overview
- Flange Connection Type S.A.E. J518 O-ring flange face seal
- Materials, Wetted Buna-N (NBR), cast iron, Fluoroelastomer, Steel
- Media Compatibility Alcohols, Argon, Compatible Gases, Compatible Liquids, Nitrogen, Oils, Water
- Operating Temperature, Max 180 °F
- Pressure Limits Up to 25 psi
- Valve Type 2-way lug butterfly
Series SAE Butterfly Valves are an ideal low cost hydraulic reservoir shut off valve. These valves are designed to meet the demanding needs of the fluid power industry. Unique features include an O-ring flange face seal complying with S.A.E. J518 dimensional requirements. This design provides for bubble tight reservoir shut off up to 25 psi (1.72 bar) and a maximum temperature of 180°F (82.2°C). The compact envelope dimension reduces space requirements. Unit allows for adjustment by incorporating an open/close detent position lock which can be infinitely positioned to achieve a desired flow rate. The unique design resists the vibrations associated with hydraulic pumps and pumping systems. Optional fluoroelastomer seals and locking handle are available.
Product Applications
- Hydraulic reservoir isolation on injection molding or earth moving equipment
- Used to isolate the hydraulic reservoir during maintenance
