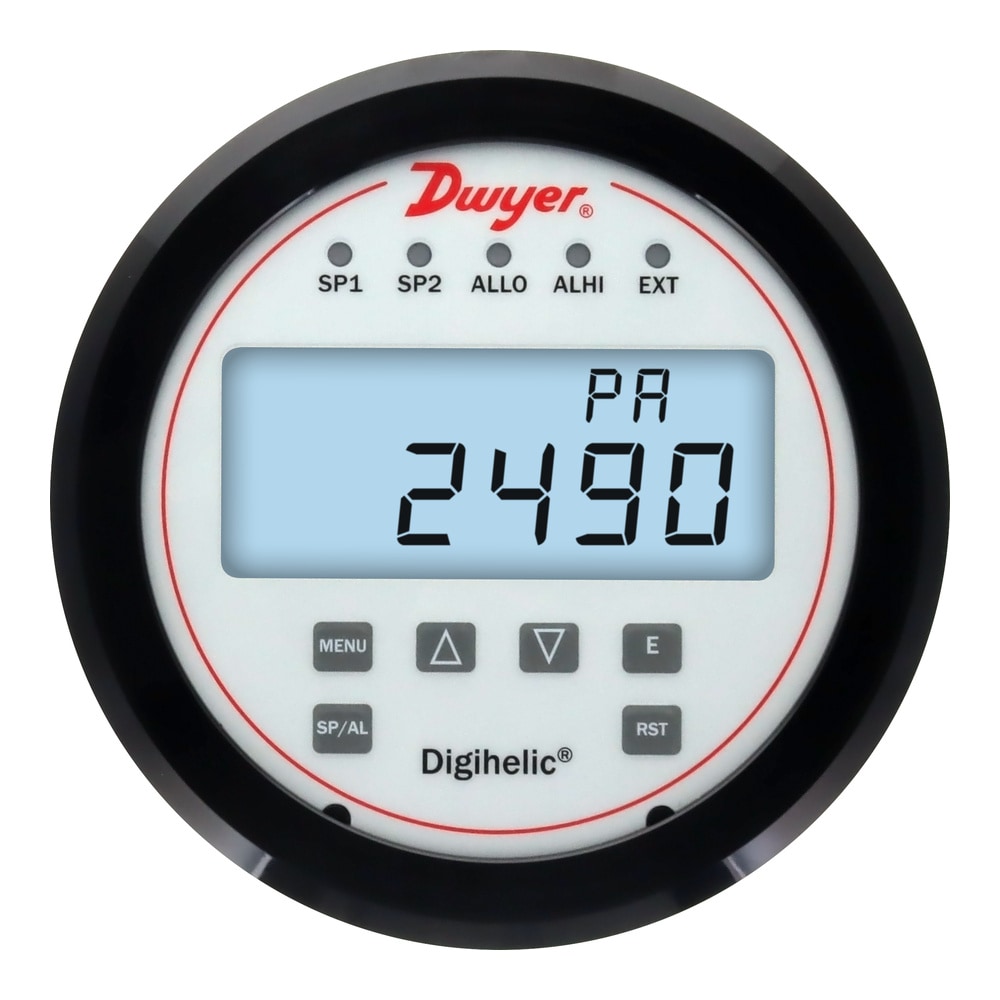

Digihelic® Differential Pressure Controller, 4-20 mA Output, 1.5% Accuracy

4.0

(1)

Models In Stock

See Product Overview

Series-DHC

From ^$ 557.50

Models In Stock

Shop Models

13 Variations available

See all series options below

Data Sheet

Product Overview

Accuracy Note ± 0.5% FSO for all ranges, except 0.5 in w.c. @ ± 1% FSO, and ranges at or below ± 0.25 in w.c. @ ± 1.5% FSO
Baud Rate 9600 to 115200
Burst Pressure 6 psi Maximum
Compliance BTL, CE
Data Interface BACnet MS/TP, Modbus RTU
Device Load 1/8 Unit
Display Note Backlit LCD display, LED setpoint indicators
Display Type LCD
Electrical Connection Sub-D Male Miniature Connector
Enclosure Ratings IP66, NEMA Type 4X
Height 1.9 in
Materials Polycarbonate
Materials, Wetted Consult Factory
Media Compatibility Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases
Mounting Orientation None
Number of Wires 4
Operating Temperature, Max 158 °F
Operating Temperature, Min -4 °F
Outer Diameter 5 in
Output Detail 4 to 20 mA; 0 to 10 V, 0 to 5 V, 1 to 5 V, 2 to 10 V
Output Signal Current, Voltage
Power Consumption 3 VA
Pressure Type Differential
Process Connection Note 1/8" female NPT ports on side and back
Process Connection Size 1/8 in
Process Connection Type NPT Female
Response Time 400 ms
Response Time Note 400 ms (damping set to 0)
Set Point Adjustment Menu Configurable
Stability <± 1% FSO/year
Supply Power Note 12-28 VDC or 12-28 VAC 50 to 400 Hz
Supply Power Type AC/DC
Supply Voltage 12 to 28 Vac/Vdc
Switch Note 2 SPDT relays, 1 A @ 30 VAC/VDC
Switch Rating 1 A @ 30 Vac/Vdc
Switch Type (2) SPDT
Thermal Effects 0.02% FS/°F
Weight 8.8 oz
Zero Setting Adjustable Range Accessible via Menus

The Series DHC Digihelic® Differential Pressure Controller is a 3-in-1 instrument possessing a digital display gage, control relay switches, and a transmitter with both current and voltage outputs. Combining these 3 features allows the reduction of several instruments with one product, saving inventory, installation time, and cost. The Series DHC Digihelic® differential pressure controller is the ideal instrument for pressure, velocity, and volumetric flow applications reading in several commonly used engineering units with optional unidirectional or bidirectional ranges. These units achieve a 1.5% or better accuracy on extremely low ranges, and 0.5% accuracy for ranges at or above 1 in w.c. Calibration can be performed in the field, making maintaining its accuracy more manageable. Additionally, the Series DHC Digihelic® differential pressure controller includes 2 SPDT control relays with adjustable deadbands. Programming the unit is simple using the built-in menu. With scalable 4-20 mA, selectable voltage process outputs, and selectable Modbus® or BACnet communication, this controller can easily fit into your application.

NIST CALIBRATION available in Product Configurator.
