RLC04-2

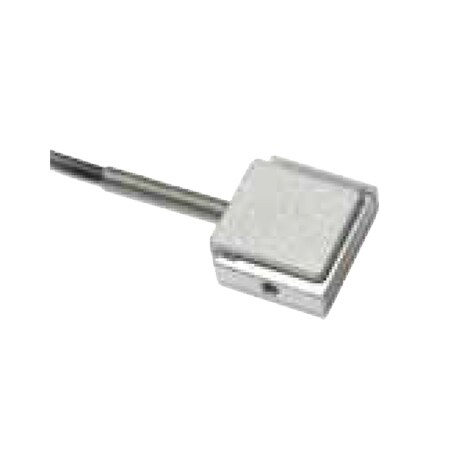

Force or Torque Indicators with Remote Sensors
Volume discounts available
Volume Discount Schedule
| Quantity | Price each |
|---|---|
| 1-9 | $1,755.78 |
| 10-24 | $1,667.99 |
| 25-49 | $1,632.88 |
| 50-99 | $1,562.64 |
| 100+ | $1,527.53 |
Added to Your Shopping Cart
Configuration complete.
Please add to cart to keep it or exit the configuration
Please add to cart to keep it or exit the configuration
Failed to Save Configurations, Click on Configure Button Start Again
Product Specs
<< See all Product Models| Brand |
 |
| Accuracy | ± 0.2 % |
| Accuracy Class | 0.1% to 0.25% |
| Additional Features 1 | Miniature Load Cell, Requires DFG-RS3 Base Unit |
| Display Measuring Units | gF, kgF, kgFm, kgFmm, kN, lbF, lbFin, N, Ncm, Nm, ozFin |
| Force Type | Compression, Tension |
| Load Cell Type | Mini S-beam |
| Measuring Capacity | 2 lbf |
| Operating Temperature, Max | 38 °C |
| Operating Temperature, Min | 5 °C |
| Relative Humidity | 96% non-condensing maximum |
| Safe Overload | 200% FS |
| See All Specs | |
PDFs & Manuals
Show Ratings & Reviews
Rated 2 out of
5
by
KVoorhies from
Unclear on Website
I was told that the meter and load cell were a kit, even after talking with your engineering. Other loads cells are $500 less! We were in a pinch, so we order both items separately. But $1500 for a load cell and meter seems excessive. Called customer support - was no help understanding, just kept stating "sold separately". It seems very odd that the meter and load cell are exactly the same price.
Date published: 2020-04-27
Rated 1 out of
5
by
youngblood from
In-accurate Information
Contacted Omega prior to purchasing the indicator and asked if you could disconnect a load cell after applying pressure then reconnect to the same load cell with the same loads applied, would it still read current load? Initially told yes, made the purchase to find out that was untrue. Contacted Omega again and then they told me the load cell would start back at zero. So now instead of being able to connect and reconnect from one load cell to another you need to purchase one indicator per load cell to constantly monitor the loads in different areas. My application covers a large area and having fragile wires hanging everywhere is not feasible. The specific PN's I'm referencing are: DFG-RS3, DFG-RSA and LCWD-1K. Due to poor information provided prior to purchasing and the horrible customer service experience OMEGA gets a low rating.
Date published: 2022-05-05
Rated 5 out of
5
by
John SH from
very versatile
the fact that calibration data is stored in the sensor is very helpful. no recalibration needed when you switch sensors.
Date published: 2023-12-20
Rated 4 out of
5
by
Tony56546252 from
Just what we needed to get the job done.
It was hard to find a sensor and loadcell combo that was transportable and met our needs. This worked great
Date published: 2023-03-30
Rated 4 out of
5
by
Tony56546252 from
Just what we needed
Easy to use and came preprogrammed which was very helpful.
Date published: 2023-03-30
