Series-DPG

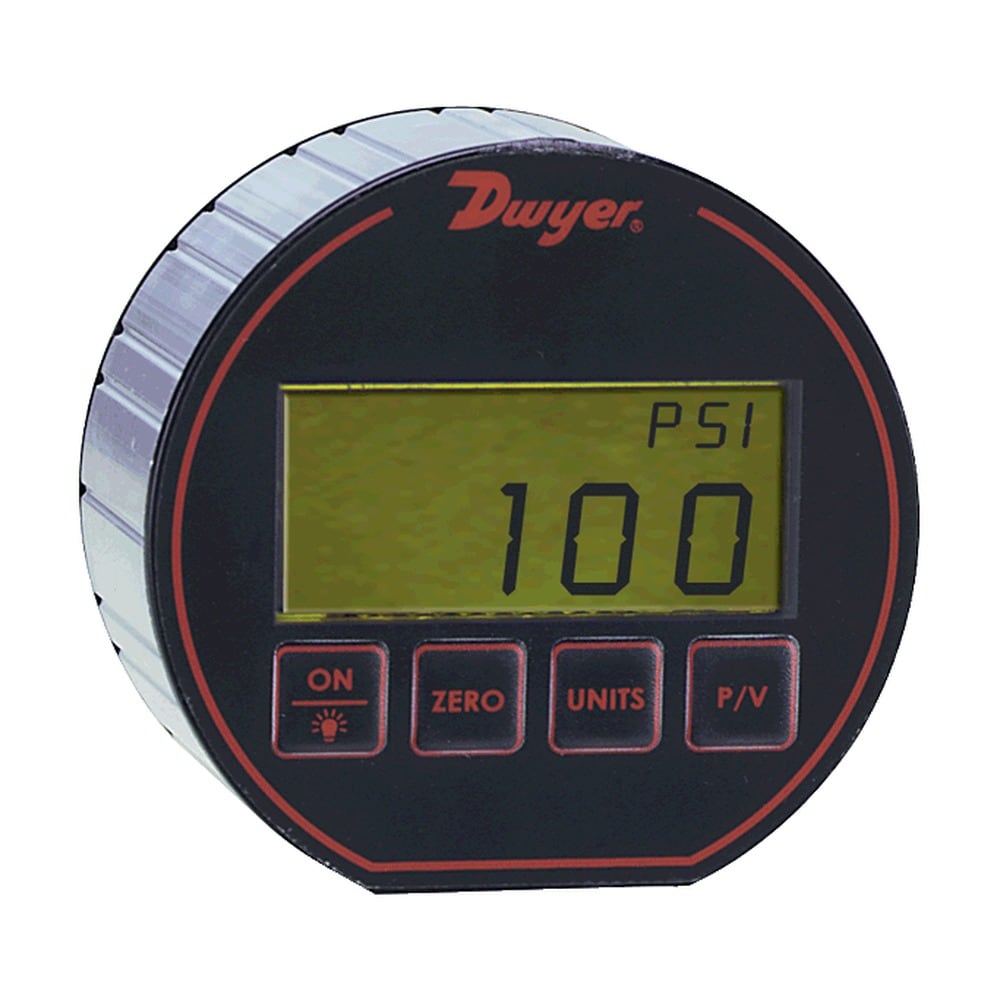

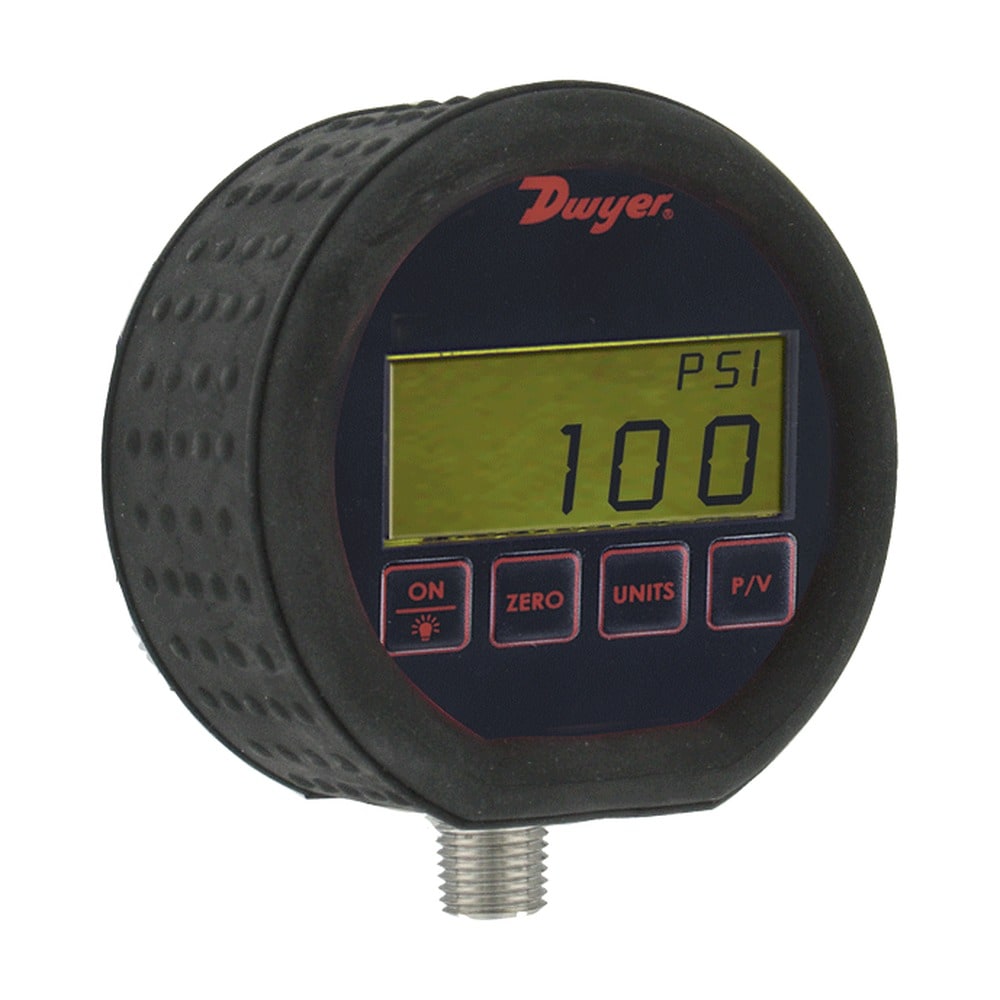

Digital Pressure Gauge ± 0.25% Accuracy, 4-Digit Display, Battery-Powered

(0)

Models In Stock

High accuracy provides exceptional measurement minimizing costly out of specification conditions
Backlit 4-digit display provides clear parallax-free reading reducing potential for errors
Battery-powered gage with auto-shutoff eliminates wiring and prolongs battery life reducing service calls
Push-button zero reduce installation and service time

See Product Overview

Series-DPG

From ^$ 318.50

Models In Stock

Shop Models

More Variations Available

See all series options below

Data Sheet

Product Overview

Auto-Shutoff Gage: 60 min, Backlight: 2 min
Battery Size and Type Alkaline AAA
Dial Depth 1.9 in
Dial Dia 3 in
Display Note 4 digit (.425˝ H x .234˝ W digits)
Display Type LCD
Enclosure Ratings IP66, NEMA Type 4, NEMA Type 4X
Materials Aluminum, Polycarbonate, NBR, 316L Stainless Steel
Materials, Wetted 316L Stainless Steel
Media Compatibility Alcohols, Butane, Combustible Gases, Compatible Liquids, Methane, Oils, Propane, Water
Number of Digits 4
Operating Temperature, Max 130 °F
Operating Temperature, Min 0 °F
Process Connection Size 1/4 in
Process Connection Type NPT Male
Set Point Differential/Hysteresis 1 Least Significant Digit
Supply Power Note (2) AAA alkaline batteries, included, user replaceable, Battery Life: 2000 hours typical; Low battery indicator (60 hours in continuous use)
Supply Power Type Battery
Thermal Effect 0.09%/F @ 10 to 32°F, 0.026%/°F @ 32 to 70°F, 0.016%/°F @ 70 to 158°F
Weight 8.84 oz

The Series DPG Digital Pressure Gages have a high ±0.25% or ±0.5% full-scale accuracy. The 4 digit digital display will reduce the potential for errors in readings by eliminating parallax error commonly produced with analog gages. Series DPG is battery powered and has an auto-shut off to conserve battery life. Battery life, on average, will last 2000 hours. A 4 button key pad allows easy access to features without the need to work through complex menus or difficult key combinations. These features include backlight, peak and valley, tare or auto zero and conversion of the pressure units.

NIST CALIBRATION available in Product Configurator.
