Series-SGO

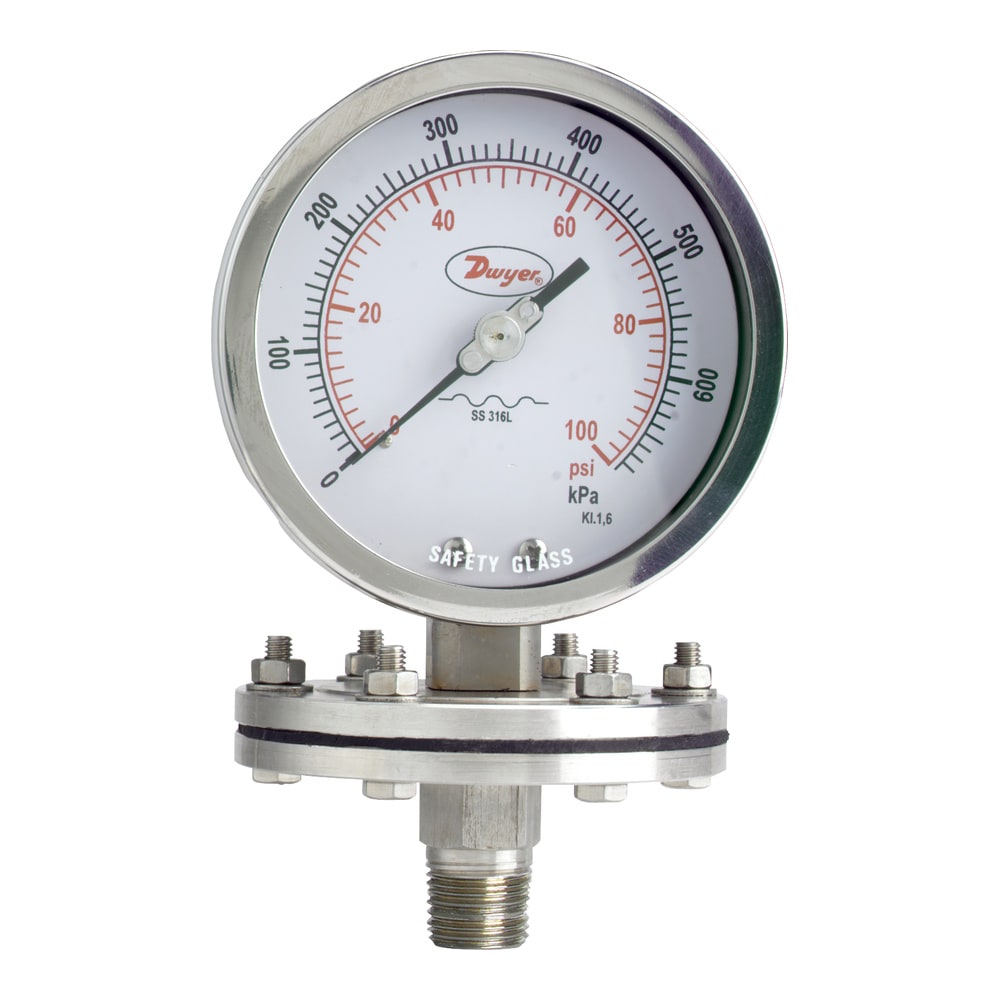

Dual Scale Gages, ± 1.6% Accuracy, 304 SS, PTFE Diaphragm, 300 psi
- Stainless steel housing and wetted parts resist ambient corrosion for longer service life in harsh environments
- Wetted parts permit use in chemical applications
- High accuracy gage for applications requiring more precise measurement
- Models that support vacuum to higher pressure ranges provide a selection to meet specific applications
- Specified with high ambient and process temperature ratings mean more robust uses and longer service-life
Series-SGO
From
$
166.65
Product Overview
- Accuracy ± 1.6 %
- Accuracy Note ± 1.6% full-scale
- Dial Dia 4 in
- Enclosure Ratings IP54, NEMA Type 3
- Materials 304 Stainless Steel, Glass
- Materials, Wetted PTFE, Stainless Steel, Steel
- Media Compatibility Alcohols, Argon, Compatible Gases, Compatible Liquids, Nitrogen, Oils, Water
- Operating Temperature, Max 149 °F
- Operating Temperature, Min -13 °F
- Process Connection Size 1/2 in
- Process Connection Type NPT Male
- Process Temperature, Max 248 °F
- Process Temperature, Min 0 °F
- Proof Pressure 130% Full Scale
The Series SGO Gages have dual English/metric scales with ±1.6% full scale accuracy. The Series SGO gages are designed with 304 SS housing, a 316L SS chamber and PTFE coated diaphragm for excellent chemical compatibility. Units can withstand ambient temperatures up to 149°F (65°C) and process temperatures up to 248°F (120°C). Ranges are available from full vacuum, compound to 300 psi.
Calibration Option available under Accessories.
We are in the process of phasing this series out.
Product Applications
- Chemical
- Refinery
- Fertilizer
- Petrochemical
- Power
- Pharmaceutical
- Pulp and Paper
- Cement
