Series-1950G

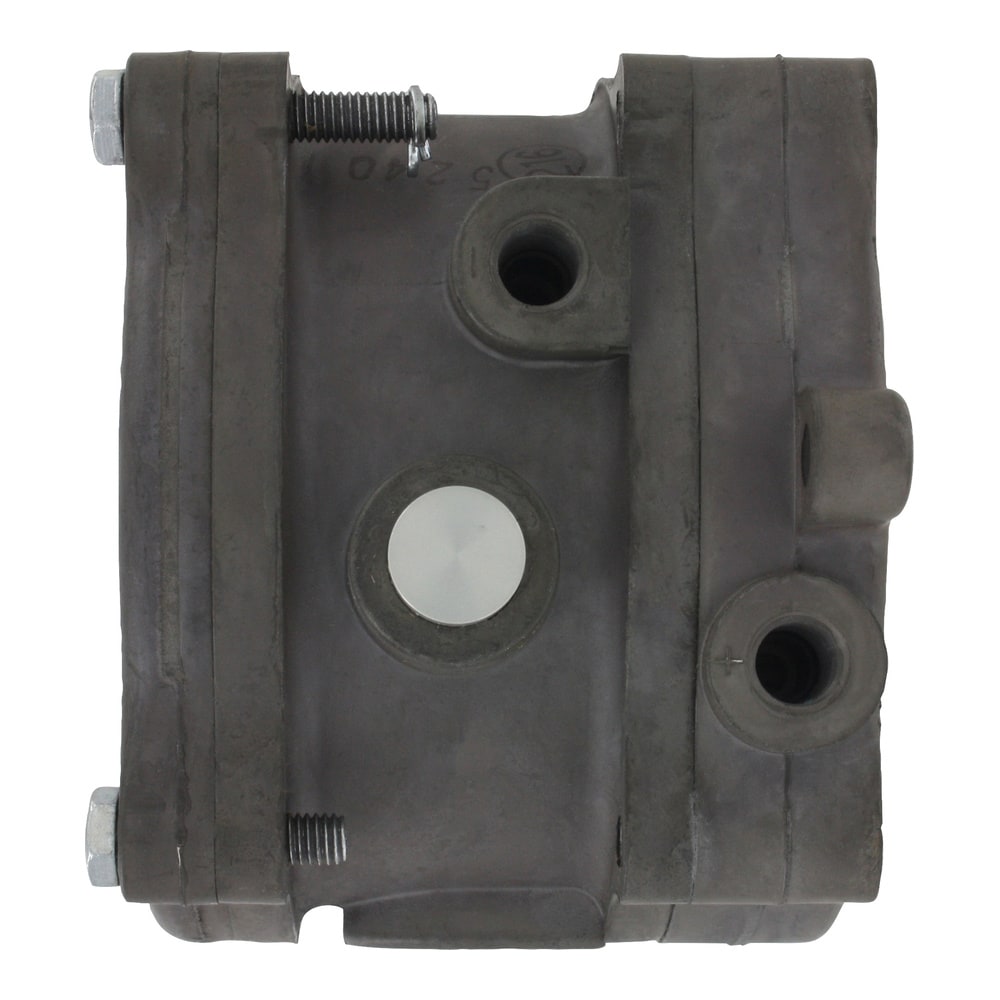

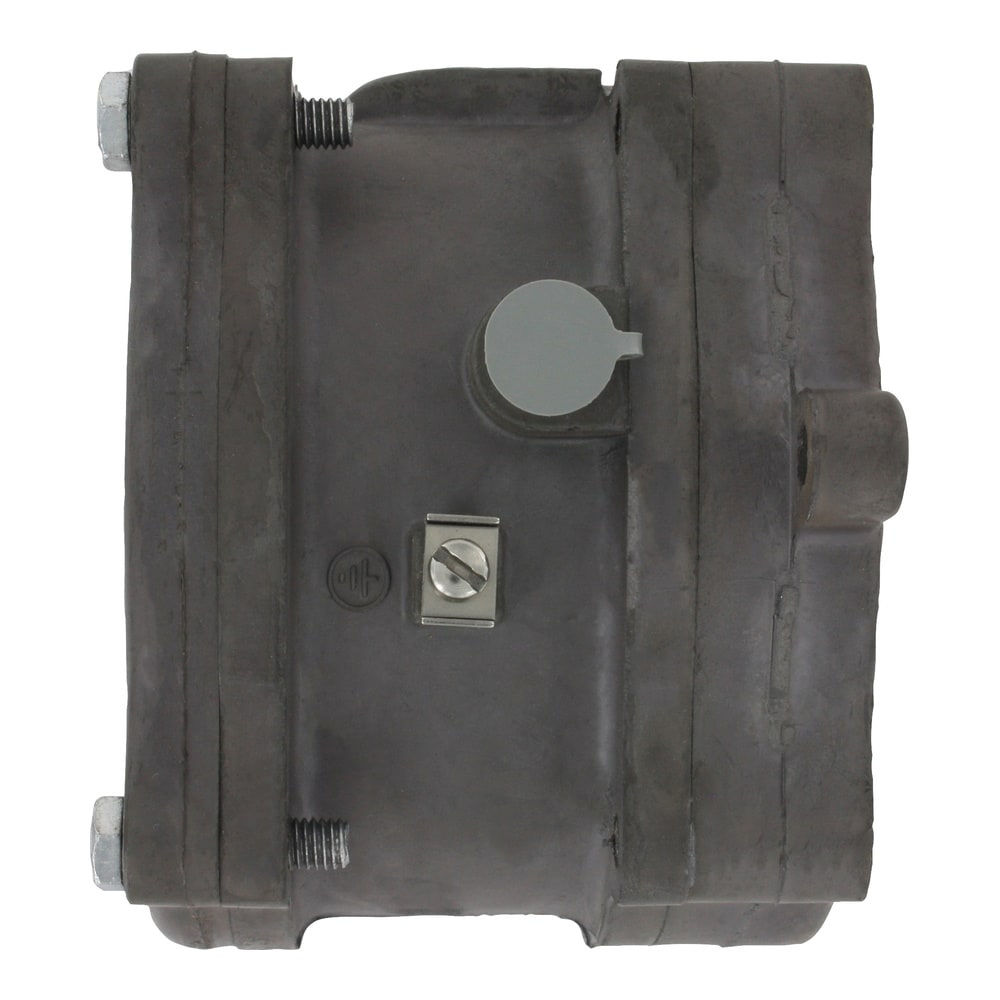

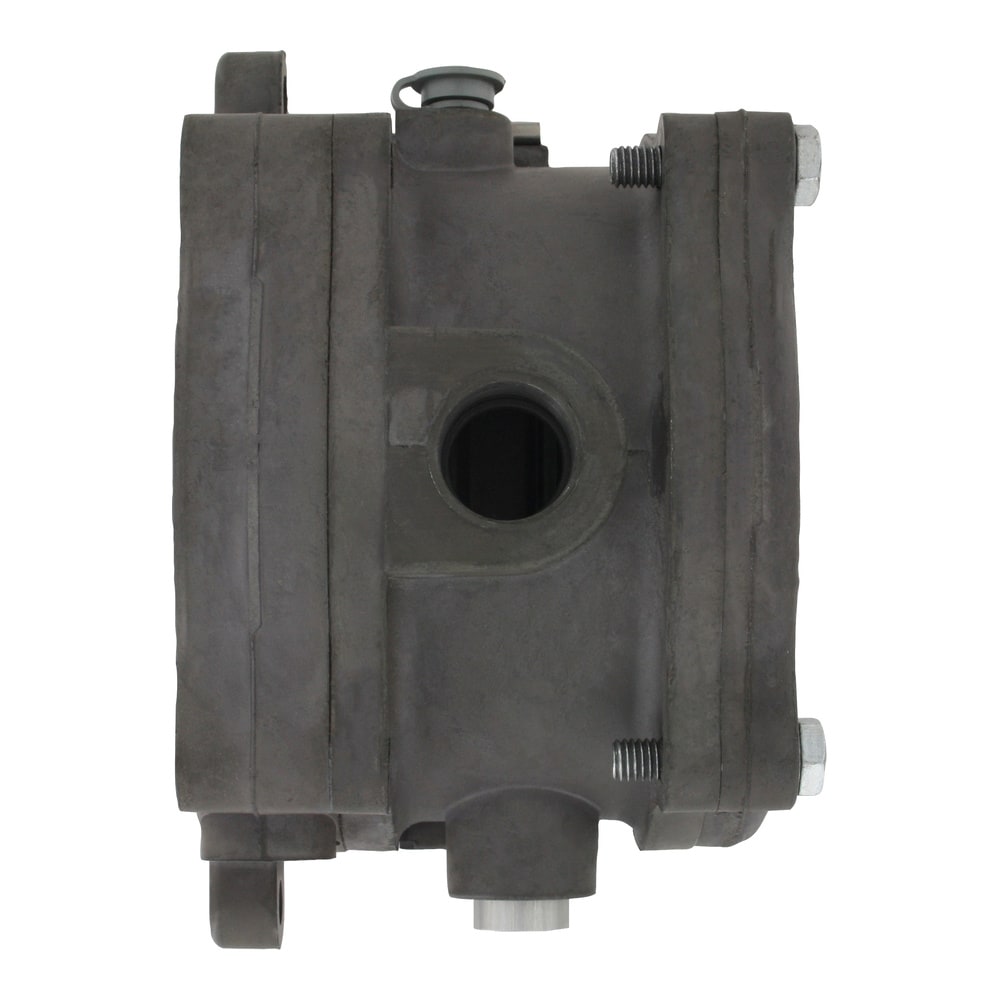

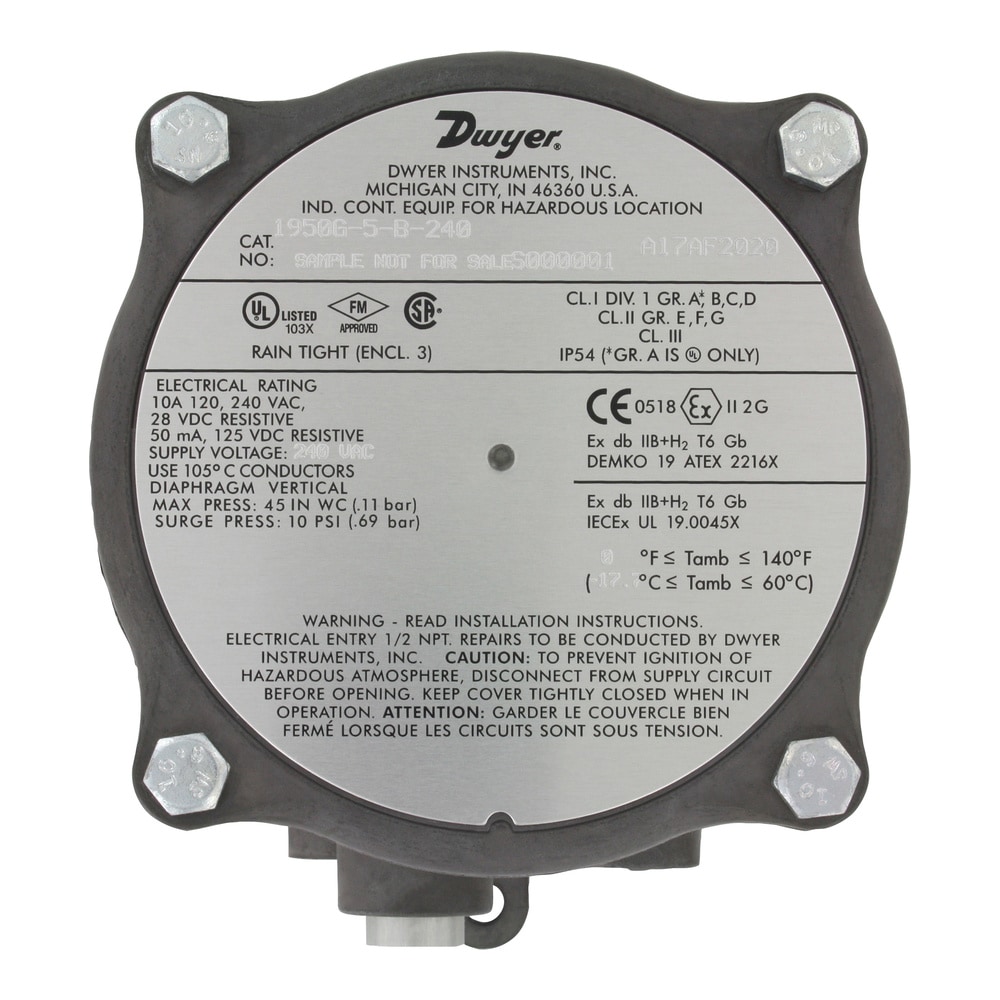

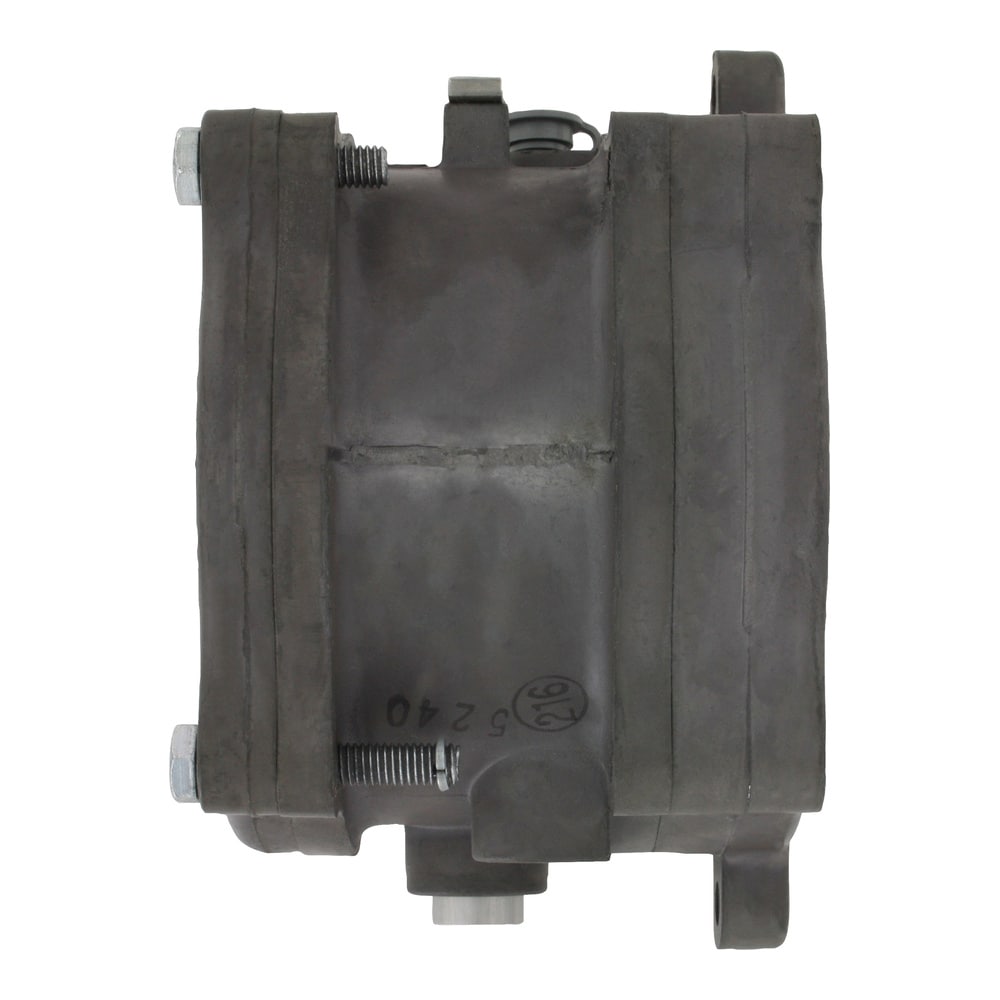

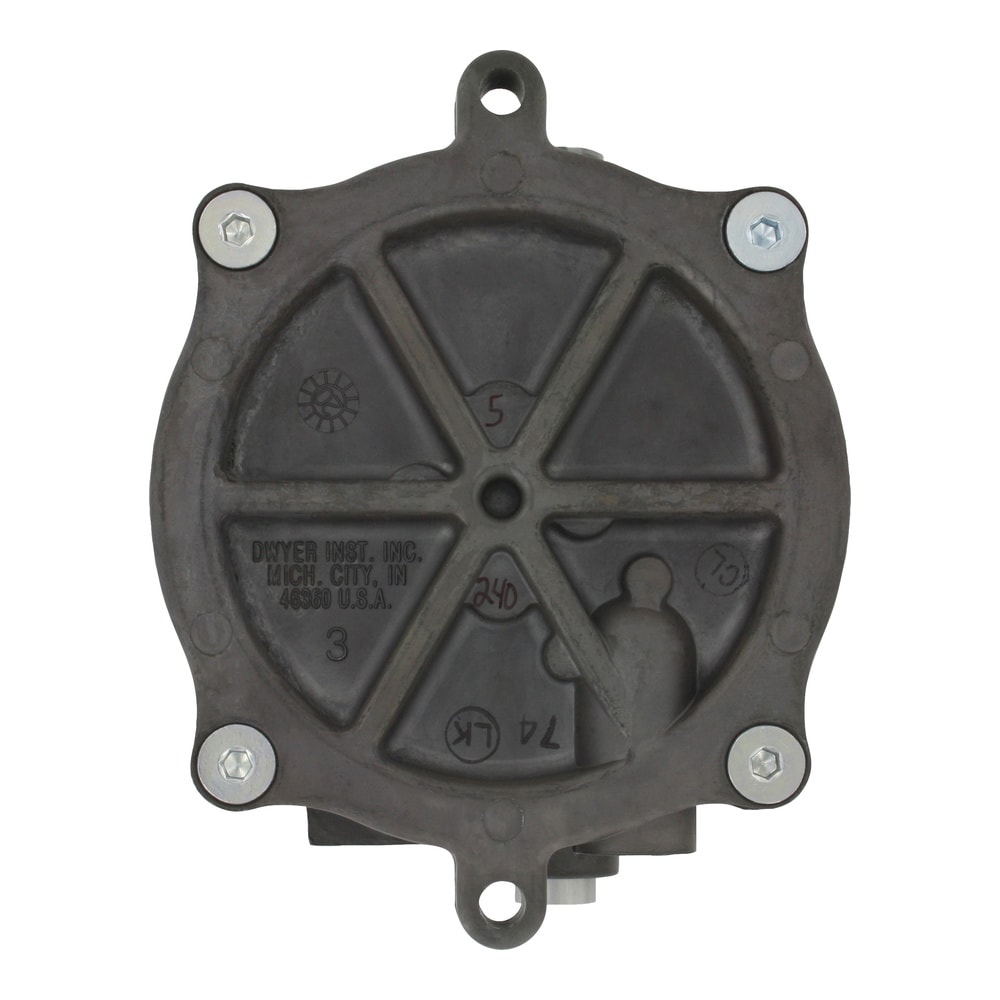

Explosion-Proof Differential Pressure Switch, Weatherproof, UL Listed, 24 V
- Compatible with natural gas
- External set point screw provides easy access that simplifies making adjustments without opening or disassembling enclosure
- Easily accessible electrical connection simplifies the installation
Series-1950G
From
$
553.00
Product Overview
- Compliance CSA, FM, UL
- Electrical Connection Screw Terminal
- Materials, Wetted Consult Factory
- Media Compatibility Air, Argon, Butane, Carbon dioxide, Combustible Gases, Helium, Hydrogen, Methane, Nitrogen, Non-Corrosive Dry Gases, Oxygen, Propane
- Mounting Orientation Vertical Diaphragm
- Operating Temperature, Max 140 °F
- Operating Temperature, Min 0 °F
- Pressure Type Differential
- Process Connection Size 1/8 in
- Process Connection Type NPT Female
- Proof Pressure Up to 45 inH2O
- Set Point Adjustment External Screw
- Switch Note 1 form C relay (SPDT), 10 A, 120/240 VAC, 28 VDC. Resistive 50 mA, 125 VDC
- Switch Rating 10 A @ 120/240 Vac/28 Vdc; 50 mA @ 125 Vdc
- Switch Type SPDT NO/NC, Selectable
- Weight 1.35 kg
Series 1950G Explosion-Proof Differential Pressure Switch combines the best
features of the popular Dwyer® Series 1950 Pressure Switch with the benefit of natural
gas compatibility. Units are rain-tight for outdoor installations, and are UL listed for use
in Class I, Groups A, B, C, & D; Class II, Groups E, F, & G and Class III atmospheres,
Directive 2014/34/EU (ATEX) Compliant for 2813 II 2G Ex db IIB+H2 T6, CSA
& FM approved for Class I, Div. 1, Groups B, C, D; Class II, Div. 1, Groups E, F, G and
Class III atmospheres. IECEx Ex db IIB+H2 T6 (-40°C<Ta<+60°C). The 1950G is very
compact, about half the weight and bulk of equivalent conventional explosion-proof
switches.
Easy access to the SPDT relay and power supply terminals is provided by removing
the top plate of the aluminum housing. A supply voltage of 24 VDC, 120 or 240 VAC
is required. A captive screw allows the cover to swing aside while remaining attached
to the unit. Adjustment to the set point of the switch can be made without disassembly
of the housing.
Product Applications
- Natural gas applications
- Process applications
- All-weather applications
