Series-3200G

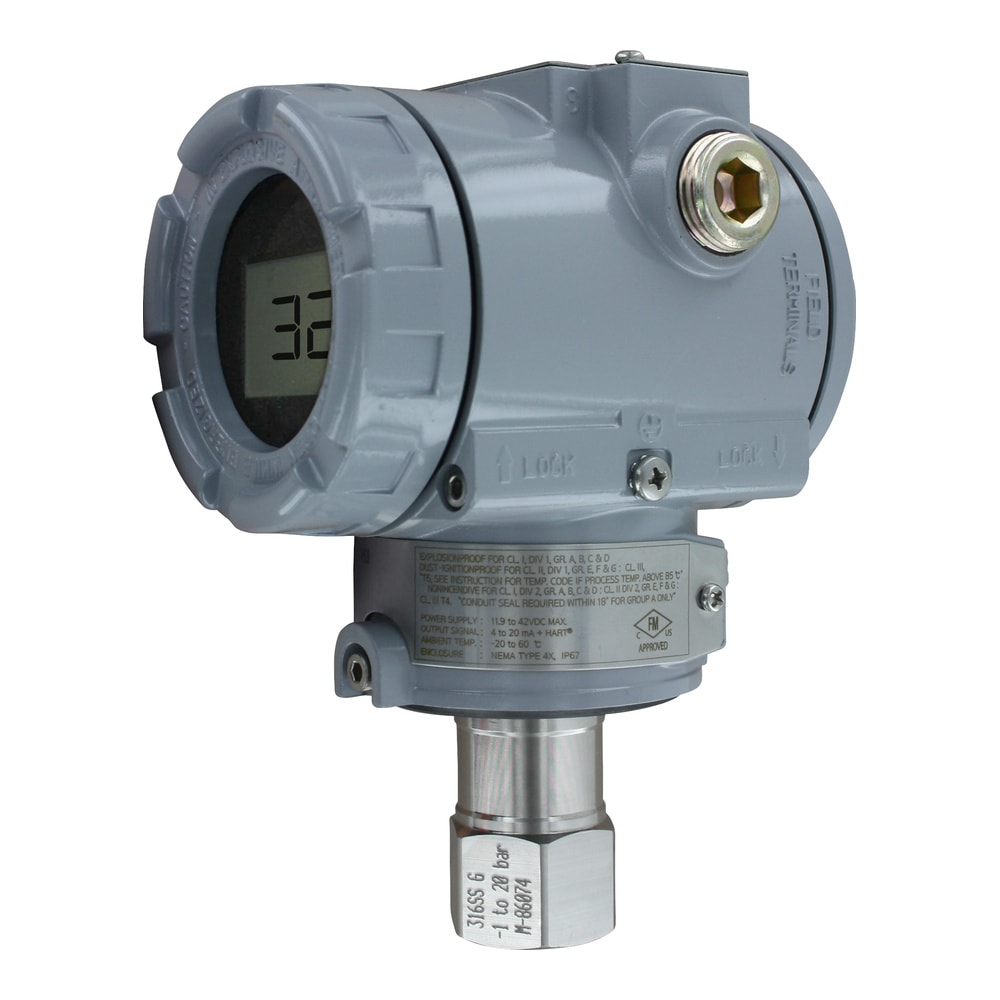

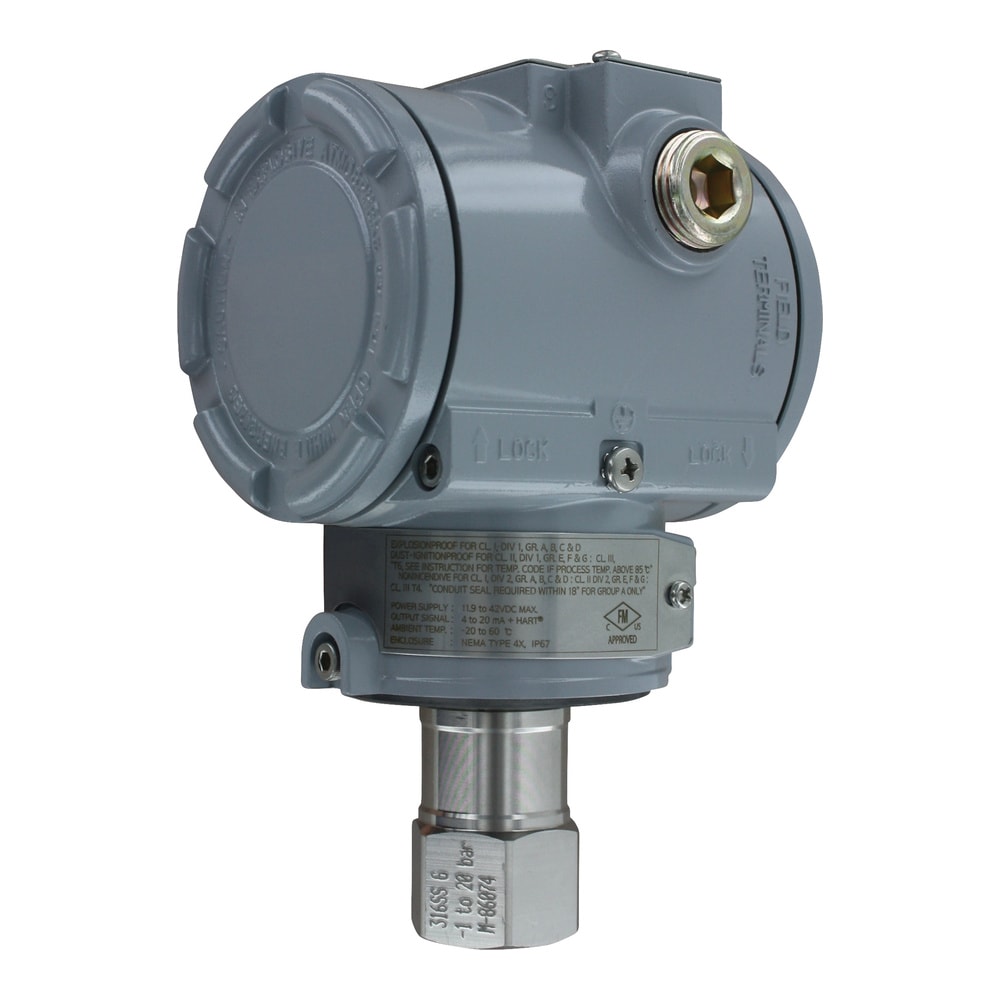

Explosion-Proof Pressure Transmitter, HART®, FM Approved, 100:1 Range
- Completely configurable using zero/span buttons (no calibrator required)
- Rangeablity (100:1)
- High accuracy (± 0.075%)
- Automatic ambient temperature compensation
- Fail-mode process function
Series-3200G
From
$
1,491.50
Product Overview
- Accuracy ± 0.075 %
- Accuracy Note ± 0.075% FS (@ 20°C)
- Compliance CE, FM
- Damping Time 0.25 to 60 s
- Electrical Connection 1/2 in NPT female Conduit with Screw Terminal block
- Enclosure Ratings Hazardous Location Rated, IP66, NEMA Type 4X
- Loop Resistance Operation: 0 to 1500 Ω, HART® Communication: 250 to 500 Ω
- Materials, Wetted 316L Stainless Steel
- Media Compatibility Alcohols, Argon, Compatible Gases, Compatible Liquids, Nitrogen, Oils, Water
- Number of Digits 5
- Operating Temperature, Max 176 °F
- Operating Temperature, Min -22 °F
- Output Detail 4 to 20 mA / HART Communication
- Output Signal Current
- Pressure Type Gauge
- Process Connection Size 1/2 in
- Process Connection Type NPT Female
- Process Temperature, Max 248 °F
- Process Temperature, Min -40 °F
- Proof Pressure Up to 58 psi
- Response Time 0.12 s
- Span Limit 0.22 to 21 psi
- Stability ± 0.125% FSO/year
- Supply Power Type DC
- Supply Voltage 11.9 to 45 Vdc
- Thermal Effects ± 0.125% span/32°C
- Turndown Ratio 100:1
- Weight 2.5 kg
The Mercoid® Series 3200G Explosion-Proof Pressure Transmitter is a microprocessor-based high performance transmitter, which has flexible pressure calibration, push button configuration, and programmable using HART® Communication. The Series 3200G is capable of being configured with the zero and span buttons, a field calibrator is not required for configuration. The transmitter software compensates for thermal effects, improving performance. EEPROM stores configuration settings and stores sensor correction coefficients in the event of shutdowns or power loss. The Series 3200G is FM approved for use in hazardous (Classified) locations. The 100:1 rangeability allows the smart transmitter to be configured to fit any application.
Product Applications
- Water and wastewater
- Chemical and petrochemical
- Pulp and paper
- Oil and gas
- Food and beverage
