Series-HGV

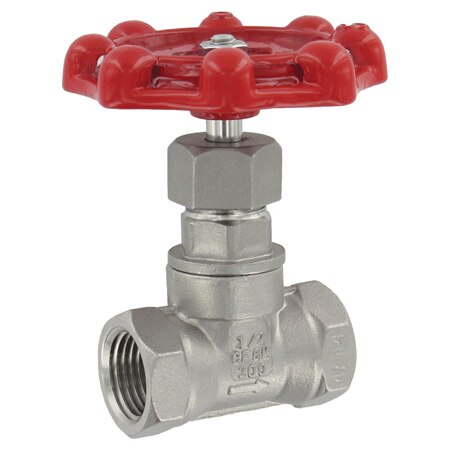

Hand Operated Globe Valve - CF8M (316) SS, for Flow Control & Shut-off
Series-HGV
From
$
96.75
Product Overview
- Materials 316 Stainless Steel, Aluminum, Cast iron
- Materials, Wetted PTFE, Stainless Steel
- Media Compatibility Alcohols, Argon, Compatible Gases, Compatible Liquids, Nitrogen, Oils, Water
- Pressure Limits Up to 725 psi
- Pressure Limits Note 725 psi (50.0 bar) from -20 to 200°F (-28.9 to 93.3°C); 500 psi (34.5 bar) at 300°F (148.9°C); 450 psi (31.0 bar) at 325°F (162.8°C); 100 psi (6.9 bar) at 350°F (176.7°C).
- Process Temperature, Max 356 °F
- Process Temperature, Min -20 °F
The Series HGV Hand Operated Globe Valve is an economical and functional alternative to large actuator/control valve packages. Metal-to-metal seating ensures excellent flow control and shut-off service. The body and bonnet are each constructed of CF8M (316) SS for superb corrosion resistance and chemical compatibility.
Product Applications
- Compatible liquids and gases
- Used for regulation of flow pipelines
