HFO-21112

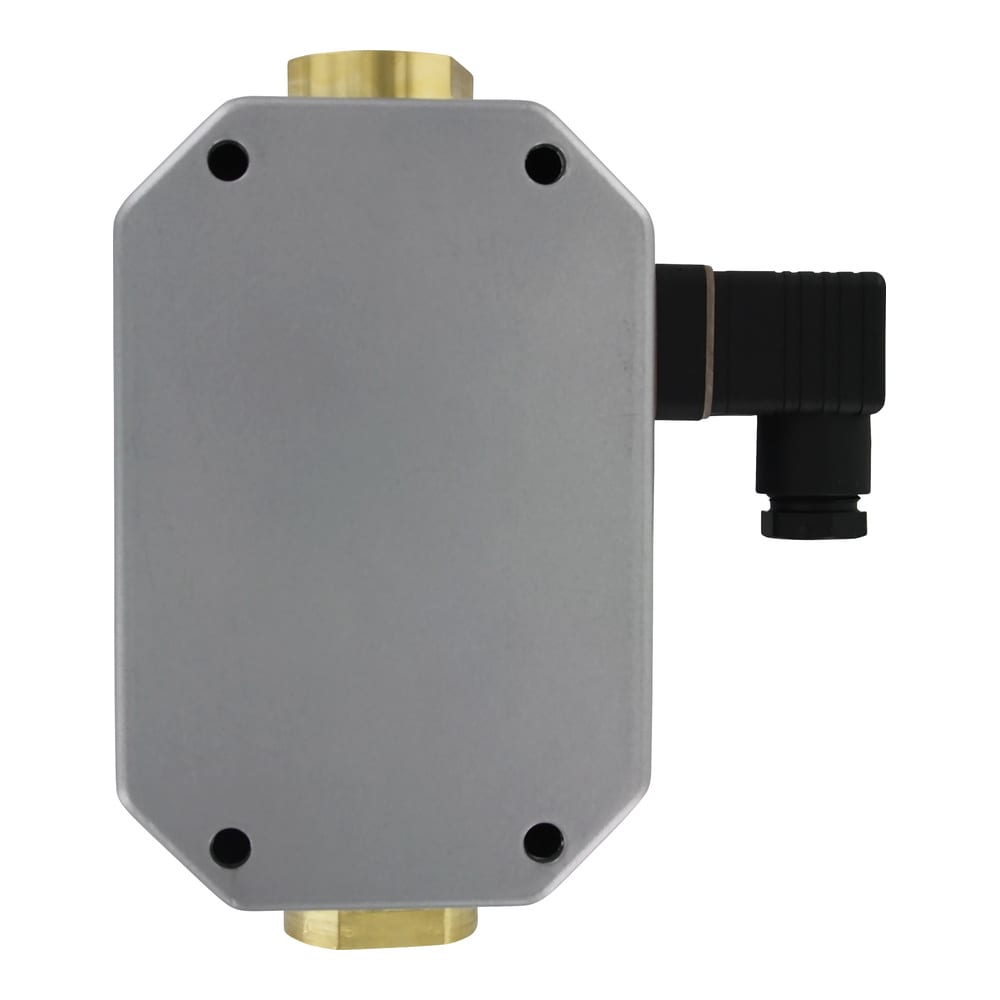

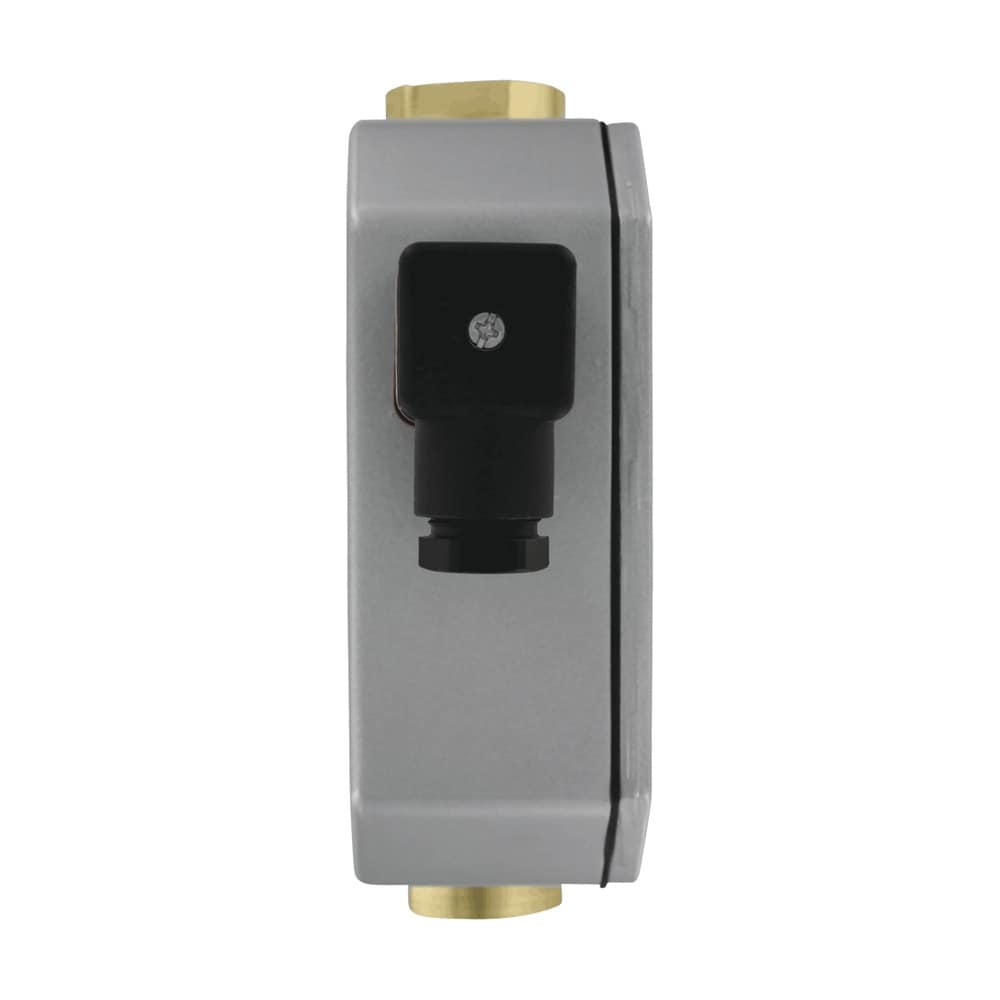

In-line flow alarm, range 1.5-12 SCFM air, 1/4" female NPT.
Added to Your Shopping Cart
Configuration complete.
Please add to cart to keep it or exit the configuration
Please add to cart to keep it or exit the configuration
Failed to Save Configurations, Click on Configure Button Start Again
Product Specs
<< See all Product Models| Brand |
 |
| Accuracy | ± 2 %, ± 5% with transitional flow |
| Additional Features 1 | Dual Scale (SCFM/SLPS) |
| Enclosure Ratings | IP66, NEMA Type 4X |
| Flow Rate, Max | 12 SCFM |
| Flow Rate, Min | 2 SCFM |
| Materials, Wetted | 304 Stainless Steel, Alnico, Aluminum, Buna-N (NBR), Fluoroelastomer, PTFE |
| Media Compatibility | Air |
| Mounting | Any Position |
| Operating Temperature, Max | 170 °F |
| Operating Temperature, Min | 0 °F |
| Pressure Limits | Up to 600 psi |
| Pressure Type | Gauge |
| Process Connection Size | 1 in |
| Process Connection Type | NPT Female |
| Repeatability | ± 1% |
| Switch Note | 10 A @ 250 VAC; 0.5 A @ 125 VDC, (resistive) |
| Switch Rating | 10 A @ 250 Vac; 0.5 A @ 125 Vdc |
| Switch Type | SPDT NO/NC, Selectable |
| Viscosity Range | 500 SSU |
| Weight | 3 lb |
| See All Specs | |
