Series-ILA
In-Line IR Sensors for Non-Contact Temp, 32 to 932 °F, 4-20 mA Output
- Non-contact temperature measurement
- J type or 4 to 20 mA output signals
Series-ILA
From
$
539.35
Product Overview
- Accuracy ± 1 %
- Accuracy Detail 1% of reading or 1°C whichever is greater
- Cable Length 3.3 ft
- Compliance CE
- Emissivity, Max 0.95 (fixed)
- Housing Material Stainless Steel
- Operating Distance Note 15:1
- Operating Temperature, Max 158 °F
- Operating Temperature, Min 32 °F
- Repeatability 0.005
- Repeatability Note 0.5% of reading or 0.5°C whichever is greater
- Response Time 240 ms
- Spectral Response Note 8 to 14 microns
- Supply Power Type DC
- Supply Voltage 24 Vdc
- Temperature Measurement Range 32 to 932°F
- Weight 3.35 oz

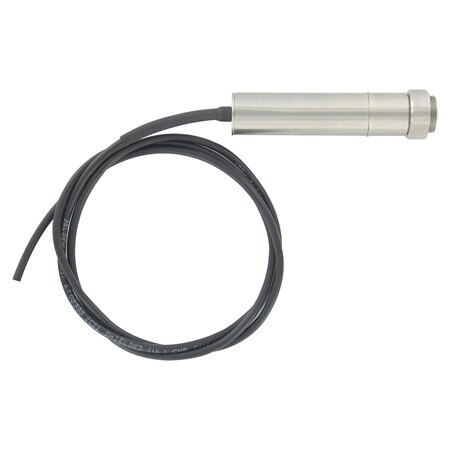

The Series ILA In-Line IR Sensors, measure temperatures from 32 to 932°F (0 to 500°C) and provide a linear 4 to 20 mA, or thermocouple output. The 2-wire signal is compatible with almost any indicator, controller, recorder, data logger, etc., without the need for special interfacing or signal conditioning. They are suitable for most materials such as food, paper, textiles, plastics, leather, tobacco, pharmaceuticals, chemicals, rubber, coal, and asphalt.
Product Applications
- Industrial processes where non-contact temperature measurement is preferred
