Series-IS626

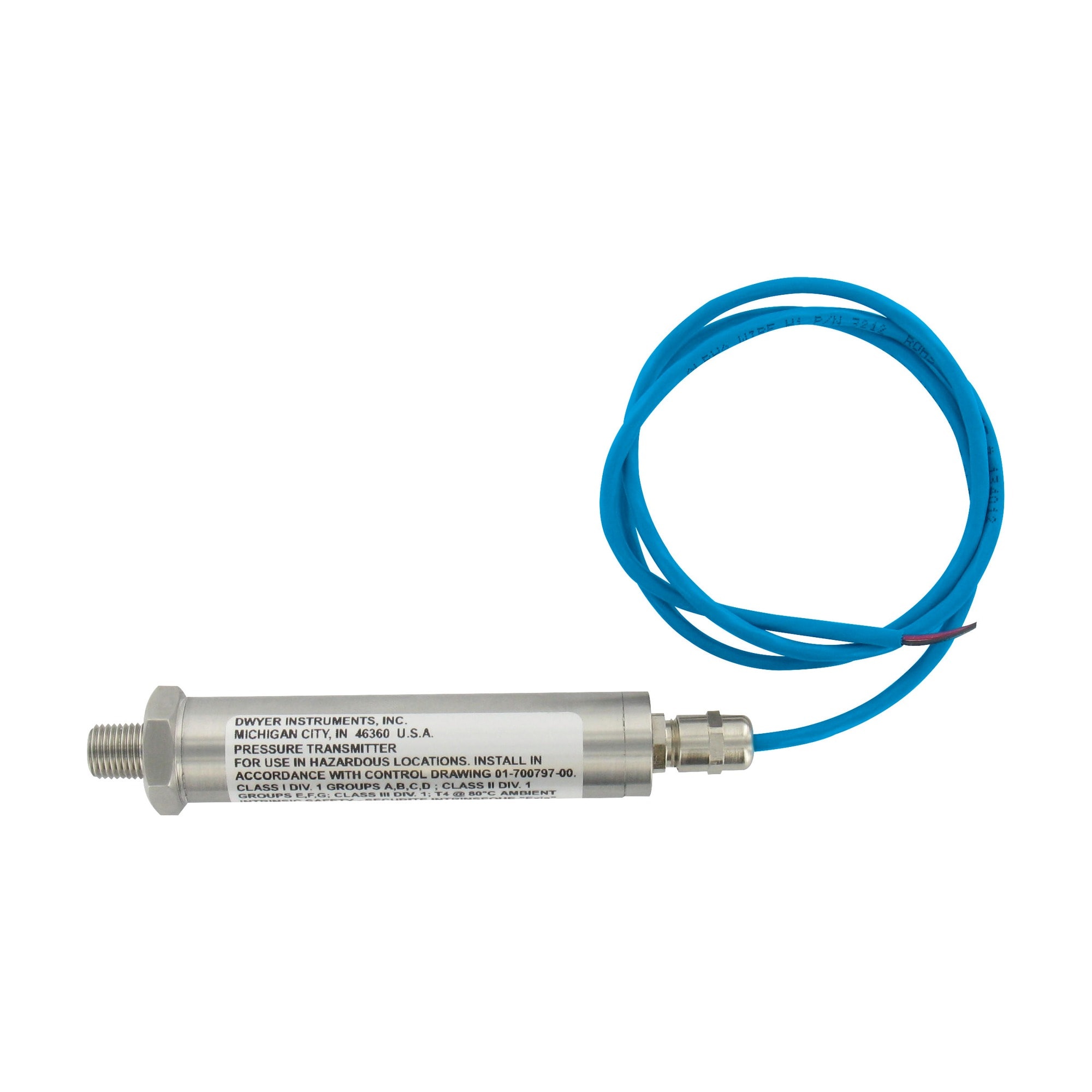

IS626 Intrinsically Safe Pressure Transmitter, 0.25% Accuracy, NEMA 4X
- Exceptional accuracy for ensuring tight-control and minimizing costly out of specification conditions
- NEMA 4X rated enclosure provides protection in harsh environments permitting outdoor monitoring or in areas where dust and particulate matter exists
- Robust sensor provides shock and vibration resistance insuring stability in controlling pressure for process applications
Series-IS626
From
$
500.00
Product Overview
- Accuracy ± 0.25 %
- Accuracy Note 0.25% FS
- Burst Pressure 150 psi Maximum
- Compensated Temperature, Max 176 °F
- Compensated Temperature, Min 0 °F
- Compliance CE, cULus, IS UL-913
- Electrical Connection Cable
- Enclosure Ratings IP66, NEMA Type 4X
- Loop Resistance 0 to 900 Ω max
- Materials, Wetted 316 Stainless Steel, 316L Stainless Steel
- Media Compatibility Alcohols, Argon, Compatible Gases, Compatible Liquids, Nitrogen, Oils, Water
- Mounting Orientation Not Position Sensitive
- Operating Temperature, Max 176 °F
- Operating Temperature, Min 0 °F
- Output Detail 4 to 20 mA
- Output Signal Current
- Power Consumption 38 mA
- Pressure Type Gauge
- Process Connection Size 1/4 in
- Process Connection Type NPT Male
- Proof Pressure Up to 30 psi
- Response Time 50 ms
- Supply Power Type DC
- Supply Voltage 10 to 28 Vdc
- Thermal Effects ± 0.02% FS/°F (includes zero and span)
- Weight 252 g
The Dwyer Series IS626 Intrinsically Safe Pressure Transmitter can be used to accurately measure compatible gases and liquids compatible with its 316/316L Stainless Steel wetted parts. Series IS626 full scale accuracy is 0.25%. Designed for industrial environments with a NEMA 4X (IP66) housing, this transmitter resists most effects of shock and vibration. Models are available with a 3' cable or M-12 4 pin connection.
The IS626 is UL listed for use in Hazardous (Classified) Locations. The protection method is by Intrinsic Safety,"ia". It was investigated by UL under UL Standard 913 Sixth Edition and CSA Standard No. 157-92.
NIST CALIBRATION available in Product Configurator.
Product Applications
- Monitoring pressure in hazardous environments
- Process
