Series-616WL
Low Pressure Differential Pressure Transmitter, ± 0.50% Accuracy, 4-20 mA
Models In Stock
- NEMA 4X rated enclosure provides protection in harsh environments permitting outdoor monitoring or in areas where dust and particulate matter exists

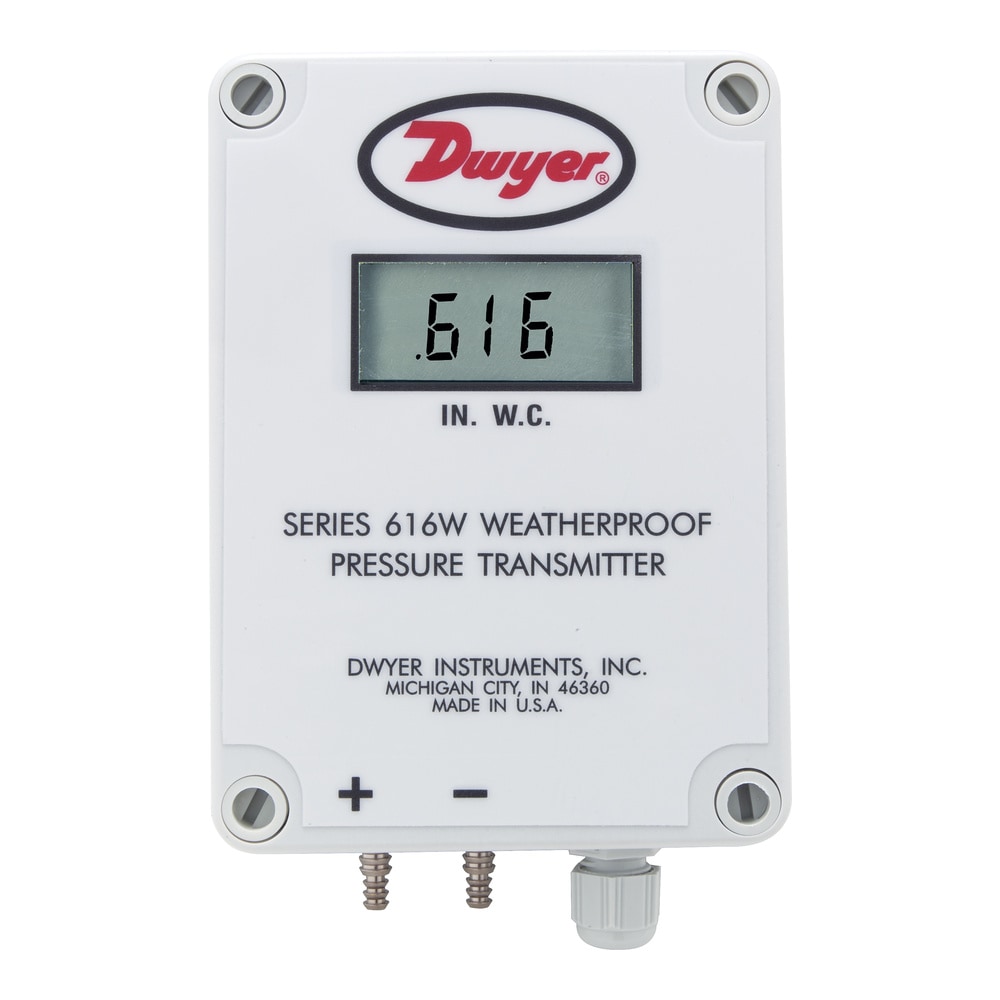

- Easy to read LCD display provides immediate local alerts allowing corrective action to be taken quicker to eliminate the problem from becoming widespread
- Zero and span controls provides easy calibration checks and shorter installation time to get device running and monitoring
- High precision accuracy at low pressure ranges provides exceptional accuracy for insuring tight-control and minimizing costly out of specification conditions
Series-616WL
From
$
767.75
Models In Stock
Product Overview
- Accuracy Note ± 0.50% FS, display accuracy ± 0.5%
- Compliance CE
- Electrical Connection Screw Terminal
- Enclosure Ratings IP66, NEMA Type 4X
- Long Term Stability ± 1% FS/year
- Materials, Wetted Consult Factory
- Media Compatibility Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases
- Operating Temperature, Max 60 °C
- Operating Temperature, Min -17.8 °C
- Pressure Type Differential
- Process Connection Note Barbed, dual size to fit 1/8˝ and 3/16˝ (3.12 and 4.76 mm) ID rubber or vinyl tubing
- Process Connection Size 1/8 in, 3/16 in
- Process Connection Type Stepped Barb Fitting
- Span Adjustment Push Button
- Supply Power Type DC
- Zero Setting Adjustable Range Digital, push-button adj
The Series 616WL Differential Pressure Transmitter senses very low pressures of air and non-combustible, compatible gases and sends a standard 4-20 mA output signal. All models, including those featuring the 3 digit LCD digital read-out, are factory calibrated to specific ranges as listed in the chart below.

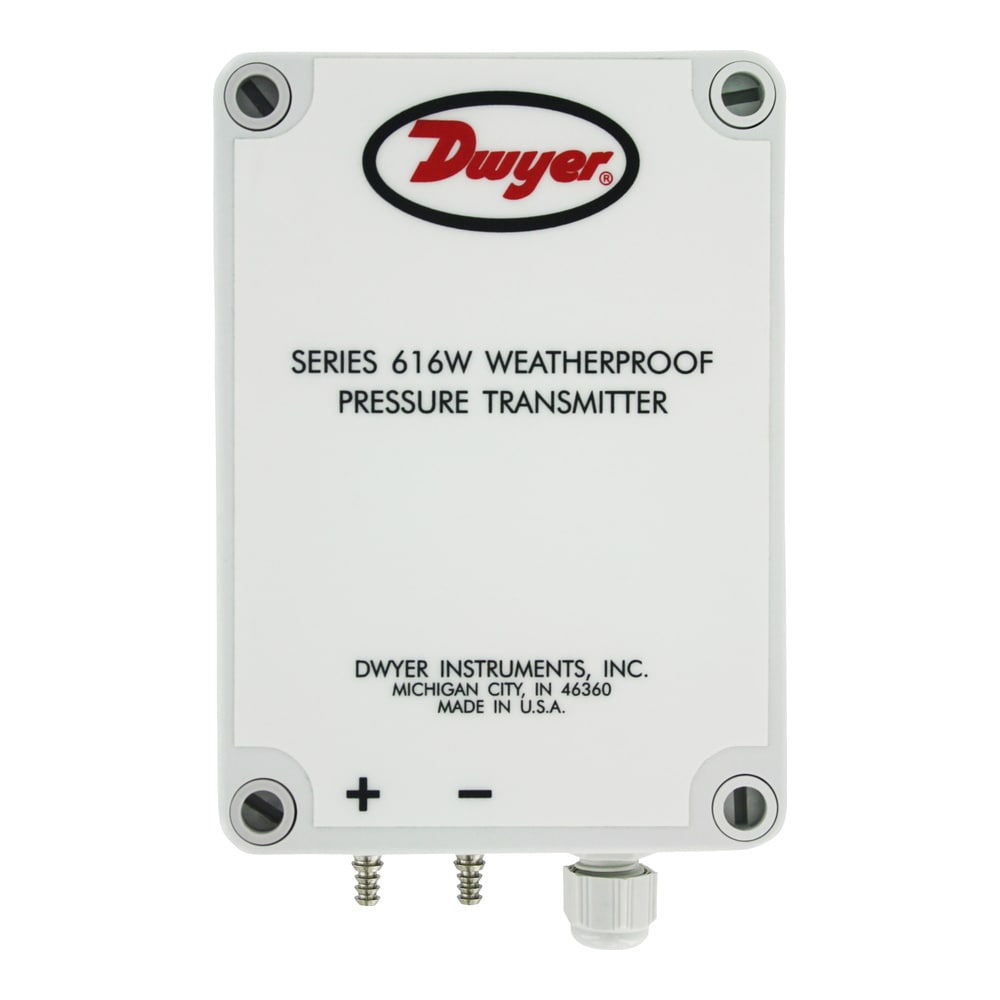

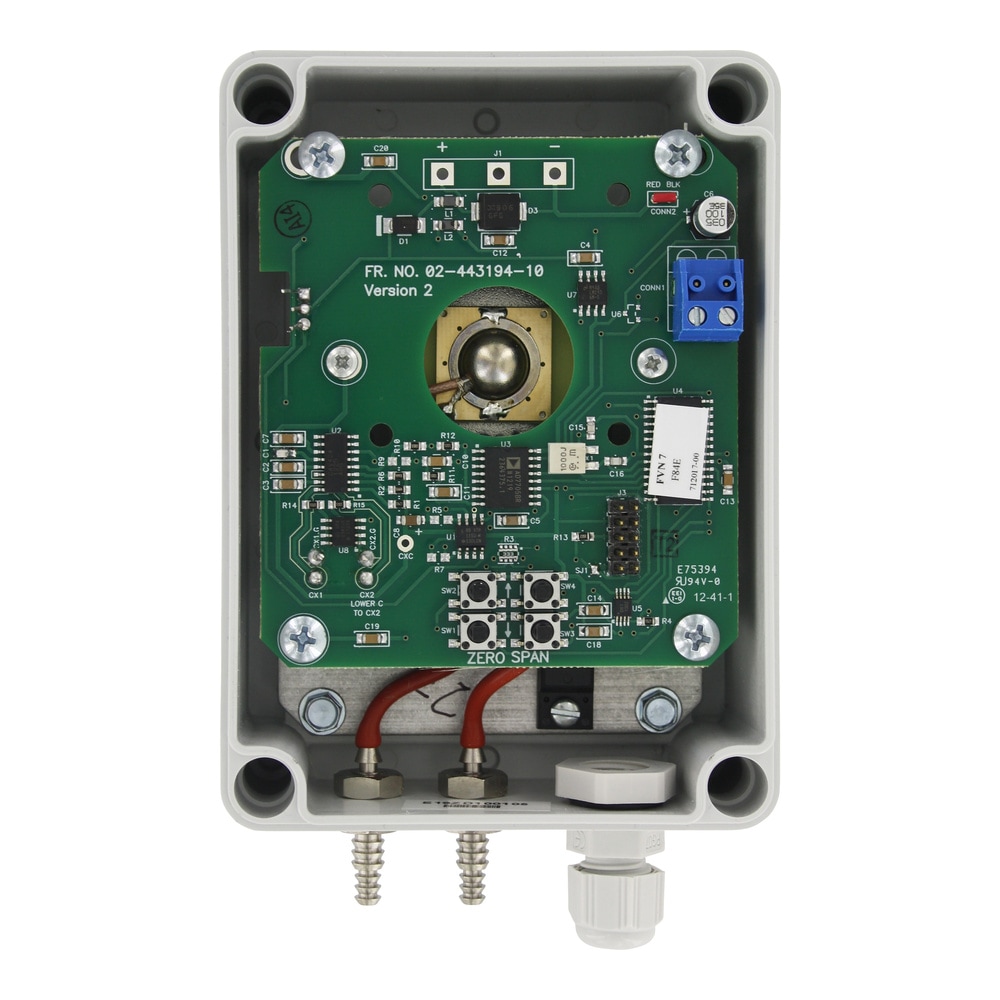

Positive, negative and differential pressures can be measured within a full span accuracy of ±0.50%. This weatherproof unit is enclosed in a polycarbonate case, designed to meet (IP66/NEMA 4X). Internal digital push button zero and span allow for quick and simple field calibration.
NIST CALIBRATION available in Product Configurator.
Product Applications
- Low pressure applications
- Outdoor HVAC
- Dust collection
- Roof-top equipment
