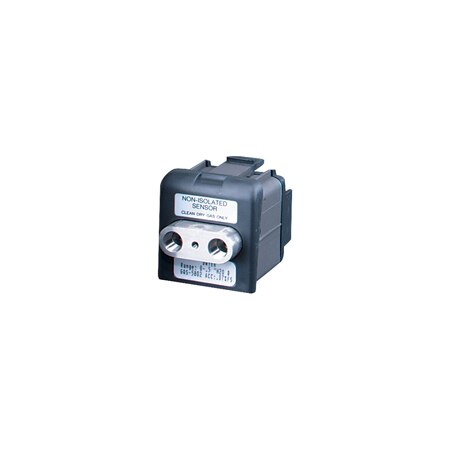

MC2016
Added to Your Shopping Cart
Configuration complete.
Please add to cart to keep it or exit the configuration
Please add to cart to keep it or exit the configuration
Failed to Save Configurations, Click on Configure Button Start Again
Product Specs
<< See all Product Models| Brand |
 |
| Accuracy Note | Differential pressure modules: ± 0.06% FS; Gauge pressure modules: ± 0.05% FS; Voltage input: ± 0.025% FS @ 0/10 VDC, ± 0.10% FS @ 0/30 VDC; Current input: ± 0.03% FS @ 0/20 mA, ± 0.05% FS @ 0/50 mA. |
| Battery Size and Type | Alkaline 9V |
| Battery life | 30 hr |
| Baud Rate | 300, 1200, 2400, or 9600, selectable |
| Burst Pressure | 2x range (0/5 psi to 0/1000 psi) |
| Control Output | Alarm |
| Current Accuracy | ± 0.03 % |
| Dampening | Programmable from 0 to 16 Consecutive Readings |
| Data Interface | RS232 |
| Display Note | Alphanumeric LCD, 0.37˝ (9.5 mm) height per line, 2 lines, 16 characters/line. |
| Display Type | LCD |
| Electrical Connection | Miniature Recessed Banana Jacks |
| Housing Material | ABS |
| Media Compatibility | Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases |
| Memory Backup | VL1220 or BR1225 lithium metal battery, installed functional, user replaceable |
| Operating Temperature, Max | 120 °F |
| Operating Temperature, Min | 32 °F |
| Pressure Accuracy | ± 0.05 % |
| Pressure Type | Gauge |
| Pressure, Max | 100 psi |
| Process Connection Size | 1/8 in |
| Process Connection Type | NPT Female |
| Process Temperature, Max | 120 °F |
| Process Temperature, Min | 20 °F |
| Repeatability | ± 0.02% of span |
| Sample/Display Rate | 100 ms |
| Sensitivity | ± 0.002% |
| Sensitivity Note | ± 0.002% of span with dampening 1 part in 50,000 (max) |
| Storage Temperature, Max | 158 °F |
| Storage Temperature, Min | -4 °F |
| Supply Current | 500 mA |
| Supply Power Note | Internal: (2) 9 V alkaline batteries, included, user replaceable and VL1220 or BR1225 lithium metal battery, installed functional, user replaceable; External: AC adapter 9 VDC, 500 mA |
| Supply Power Type | Battery/AC |
| Supply Voltage | 9 Vdc |
| Switch Rating | 110 Vdc, 120 Vdc (max), 1 A (max), 30 W, 62.5 VA |
| Switch Type | SPST form C |
| Temperature Effect Electrical Measurement | ± 0.001% of span per °F over compensated range |
| Temperature Error | Maximum of ± 0.004% of span per °F over compensated range for zero and span |
| Voltage Accuracy | ± 0.025% |
| Weight | 2.2 lb |
| Weight Note | Pressure module: 0.5, Calibrator: 2.2 |
| See All Specs | |
