AAV-1000-Series
2-Way, NC, Pilot Operated, Bronze Valve
Models In Stock
- Ideal Alternative to Complex Actuated Ball Valves
- Ideal for Neutral and Some Aggressive Fluids
- Optical Position Indication Standard
- Bronze and PTFE Wetted Parts
AAV-1000-Series
From
$
362.74
Models In Stock
Product Overview

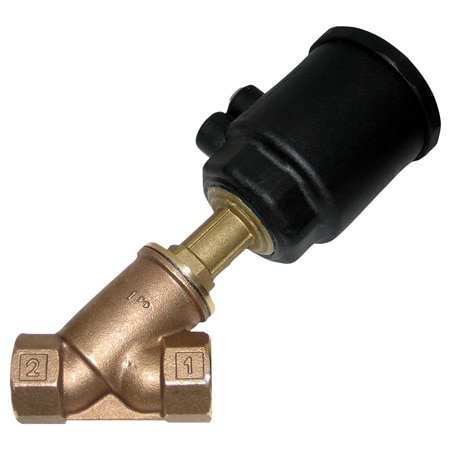

The AAV-1000 Series of air operated bronze angle seat valves are ideal for use in a wide range of industrial applications. The unique construction permits the use of these valves with a wide range of fluids including steam, select liquids and gases, and vacuums. The valve stem has a self-aligning gland which together with the floating seal assures maximum integrity. The PTFE seal material is used as standard for maximum fluid compatibility.
SPECIFICATIONS
Media Temperature: -10 to 180°C (14 to 360°F)
Ambient Temperature: -10 to 60ºC (14 to 140ºF)
Body Material: Bronze
Seal Material: PTFE
Pilot Media: Air, inert gases, water, maximum 60°C (140°F)
Valve Position: Normally closed
Flow Direction: 1 —> 2 over seat
SPECIFICATIONS
Media Temperature: -10 to 180°C (14 to 360°F)
Ambient Temperature: -10 to 60ºC (14 to 140ºF)
Body Material: Bronze
Seal Material: PTFE
Pilot Media: Air, inert gases, water, maximum 60°C (140°F)
Valve Position: Normally closed
Flow Direction: 1 —> 2 over seat
Show Ratings & Reviews
Are these valves spring return? Or are they air actuated in both directions?
Thank you for your inquiry. This valve only needs to be actuated in one direction.
Date published: 2020-04-03
