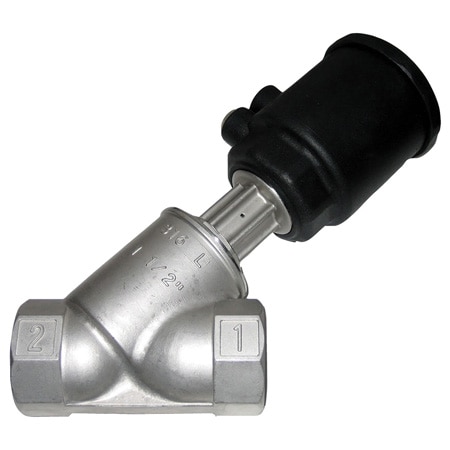

AAV-1100-Series
2-Way, NC, Pilot Operated, 316SS Valve
- Ideal Alternative to Complex Actuated Ball Valves
- Ideal for Neutral and Some Aggressive Fluids
- Optical Position Indication Standard
- 316L Stainless Steal and PTFE Wetted Parts
AAV-1100-Series
From
$
489.03
Product Overview
The AAV-1100 Series of airoperated stainless steel angle seat valves are ideal for use in a wide range of industrial applications. The unique construction permits the use of these valves with a wide range of fluids including steam, select liquids and gases, and vacuum. The valve stem has a self-aligning gland which together with the floating seal assures maximum integrity. The PTFE seal material is used as standard for maximum fluid compatibility.
SPECIFICATIONS
Media Temperature: -10 to 180°C (14 to 360°F)
Ambient Temperature: -10 to 60ºC (14 to 140ºF)
Body Material: Stainless steel AISI 316L
Seal Material: PTFE
Pilot Media: Air, inert gases, water, maximum 60°C (140°F)
Valve Position: Normally closed
Flow Direction: 2 —>1 over seat
SPECIFICATIONS
Media Temperature: -10 to 180°C (14 to 360°F)
Ambient Temperature: -10 to 60ºC (14 to 140ºF)
Body Material: Stainless steel AISI 316L
Seal Material: PTFE
Pilot Media: Air, inert gases, water, maximum 60°C (140°F)
Valve Position: Normally closed
Flow Direction: 2 —>1 over seat
Show Ratings & Reviews
Hi, What is the min and max flow rate through this valve?
Thank you for your inquiry. Please email flow@omega.com and can send a document that will help to determine the flow range for this valve.
