OMDC-PU-E
Speed Sensor for Direct Motor Shaft Mount
Models In Stock
- Mounts Directly on Motor Shaft
- 5000 Rpm or 50,000 Pulses/Minute
- Square Wave Output Signal Equals Supply Voltage: 4.5 to 24 Vdc
- NPN Open Collector Output Signal with Built-in Pull-up Resistor
OMDC-PU-E
From
$
263.17
Models In Stock
Product Overview

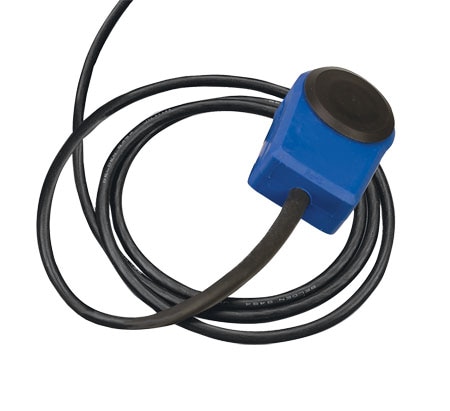

The OMDC-PU-E pick-up sensor is an economical and reliable way to monitor motor speed. Its unique design provides ease of installation in otherwise difficult to reach areas. The OMDC-PU-E pick-up sensor operates at a 5 to 24 volt level producing a sharp square wave output, which may be fed into tachometer, closed-loop control, counter, or any other digital device. The OMDC-PU-E pick-up series also includes a quadrature model to monitor both motor speed and direction by providing two square wave output signals 81° out-of-phase.
View Specs for easy mounting instructions.
New outdoor (NEMA 3R) models available: OMDC-PU-R series
View Specs for easy mounting instructions.
New outdoor (NEMA 3R) models available: OMDC-PU-R series
