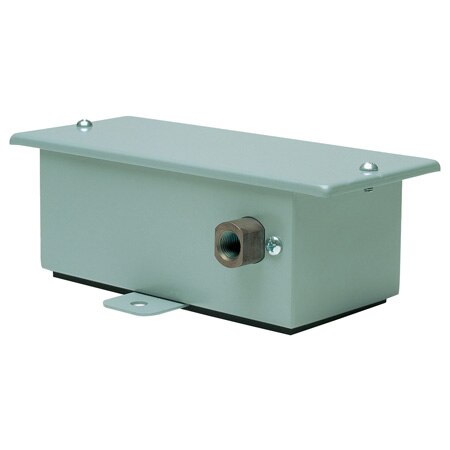

PX265
Pressure Transducers with Selectable Ranges & NEMA 4 Case
- 3 Field Selectable Ranges in a Single Unit
- User Selectable 0-5 or 0-10 Volt Output
- Rugged NEMA-4 (IP-65) Enclosure with External Mounting Bracket
- Rugged 316L Stainless Steel Monolithic Pressure Cavity
Product Overview
- Accuracy Note ± 1.0% FS
- Burst Pressure 5x Full Scale
- Burst Pressure Note 500% FS
- Compensated Temperature, Max 82 °C
- Compensated Temperature, Min -18 °C
- Electrical Connection Screw Terminal
- Enclosure Material Enamel coated 18GA steel
- Enclosure Ratings IP65, NEMA Type 4
- Pressure, Min 0 psi
- Process Connection Size 1/8 in
- Proof Pressure Note 300% FS
- Thermal Effect 0.3%
- Thermal Effect on Span error, Max ± 1% gage
- Weight 454 g
The PX265 is a rugged, industrial pressure transducer which offers three field selectable ranges in one unit. It features a 316L stainless steel pressure cavity which is machined from a solid rod eliminating any welds, seams or bonds. The PX265 incorporates a rugged NEMA-4 (IP-65) dust proof and splash proof enclosure with an external mounting bracket.
SPECIFICATIONS
Excitation: 12 to 35 Vdc
Output: 0 to 5 or 0 to 10 Vdc selectable
Accuracy: ± 1.0% FS
Operating Temperature: -18 to 82°C (0 to 180°F)
Compensated Temperature: -18 to 82°C (0 to 180°F)
Thermal Effects: 0.3% FS/°C; (± 0.025% FS/°F)
Proof Pressure: 300% FS
Burst Pressure: 500% FS
Wetted Parts: 316L stainless steel
Pressure Port: 1/8-27 NPT female
Termination: Screw terminal block
Enclosure: Enamel coated, 18 GA steel, NEMA 4 (IP65) rated
Weight: 454 g (1.0 lb)
SPECIFICATIONS
Excitation: 12 to 35 Vdc
Output: 0 to 5 or 0 to 10 Vdc selectable
Accuracy: ± 1.0% FS
Operating Temperature: -18 to 82°C (0 to 180°F)
Compensated Temperature: -18 to 82°C (0 to 180°F)
Thermal Effects: 0.3% FS/°C; (± 0.025% FS/°F)
Proof Pressure: 300% FS
Burst Pressure: 500% FS
Wetted Parts: 316L stainless steel
Pressure Port: 1/8-27 NPT female
Termination: Screw terminal block
Enclosure: Enamel coated, 18 GA steel, NEMA 4 (IP65) rated
Weight: 454 g (1.0 lb)
