Series-PUF

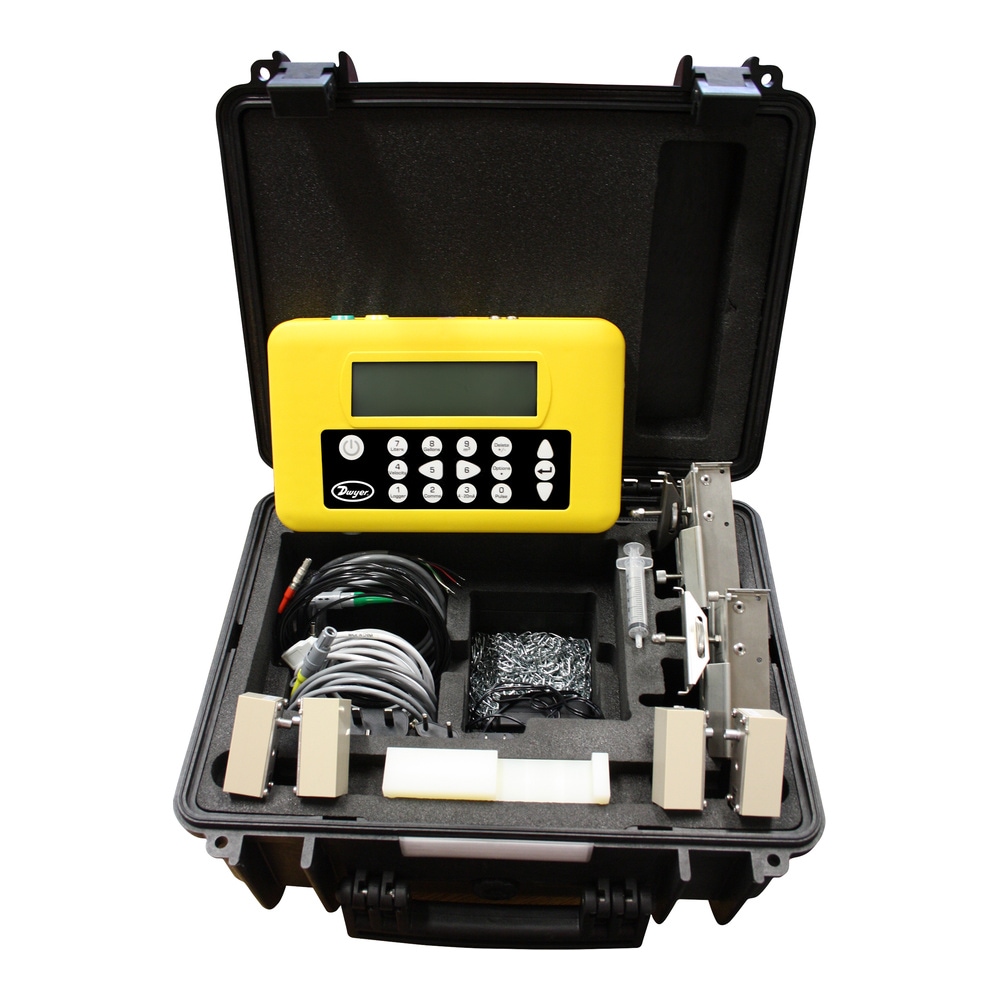

Portable Ultrasonic Flowmeter Kit - Non-Invasive, IP67, 20-Hour Battery
- Converter
- Set of Transducers (Both Sets for Model PUF-1001)
- Transducer Holders
- Set Transducer Cables (6.56 ft (2 m))
- USB, RS232, 4 to 20 mA Communication Cables
- 12 VDC Power Supply
- Ultrasonic Coupling Grease
- Set of Chains
- Ruled Guide Rail
- Test Block
- Carrying Case
Series-PUF
From
$
13,991.25
Product Overview
- Accuracy ± 0.5 %
- Accuracy Note ± 0.5 to 2% of flow reading for flow rate > 0.66 ft/s (0.2 m/s) and pipe ID > 2.95 in (75 mm); ± 3% of flow reading for flow rate > 0.66 ft/s (0.2 m/s) and pipe ID in range 0.512 to 2.95˝ (13 to 75 mm); ± 6% of flow reading for flow rate < 0.66 ft/s (0.2 m/s)
- Battery Size and Type NiMh
- Compliance CE
- Data Interface USB, RS232

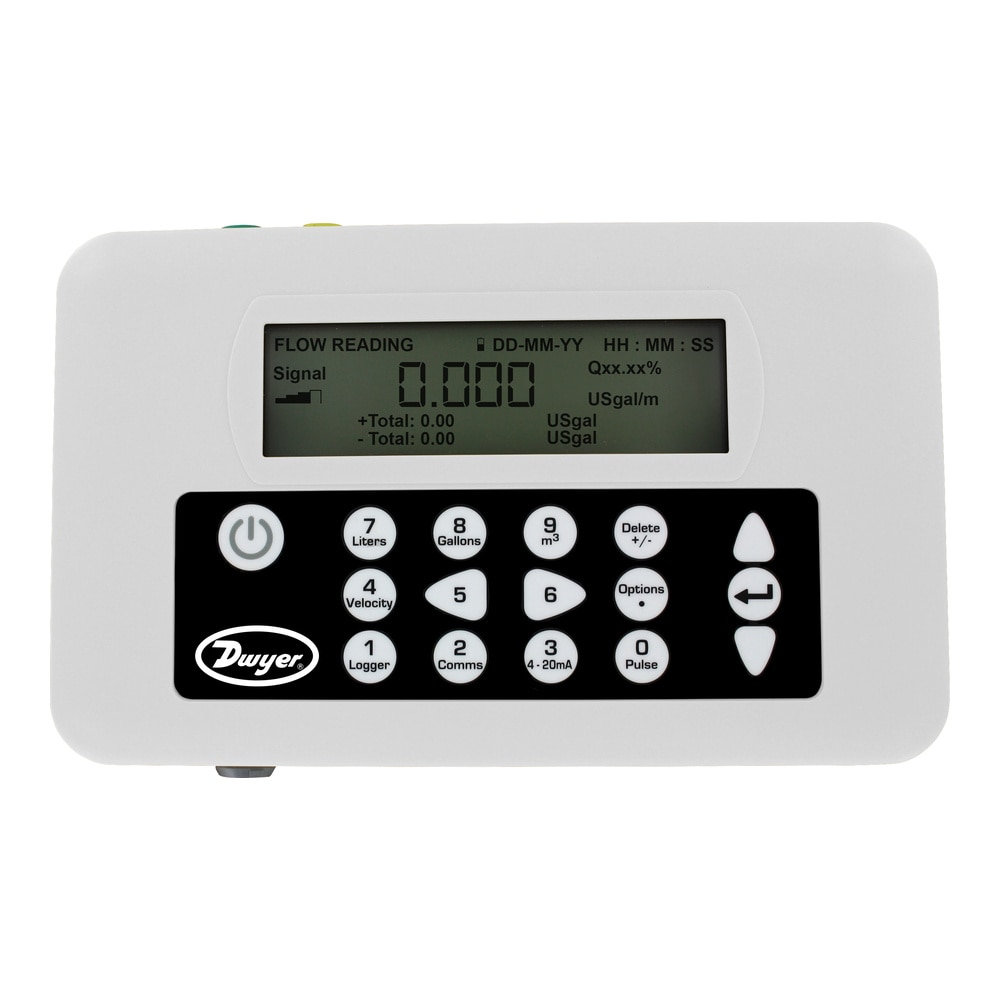

- Display Note 240 x 64 pixel graphic display, high contrast black on white with backlight; Languages: English, French, German, Swedish, Italian, Spanish, Portuguese, Russian, Norwegian, and Dutch; 5.2˝ W x 1.5˝ H
- Display Type LCD
- Electrical Connection Lemo 7-pin with cable
- Enclosure Ratings IP51, IP54
- Linear Flow Rate, Max 65.62 ft/s
- Linear Flow Rate, Min 0.33 ft/s
- Load Resistance 620 Ω max
- Materials ABS
- Media Compatibility Liquids
- Operating Temperature, Max 275 °F
- Operating Temperature, Min -4 °F
- Output Detail Analog: 1 opto-isolated output: 4-20 mA, 0-16 mA or 0-20 mA (selectable); Error current: 0-26 mA (selectable); Load resistance: 620 Ω max; Pulse: 1 opto-isolated MOSFET relay, 150 mA max, 500 pps max, 200 Hz max
- Output Signal Current, DC Pulse
- Permissible Air Content <3% by Volume
- Power Adaptor Size 110/240 Vac Adaptor. UK,US, European Adaptors Included
- Power Consumption 10.5 W
- Repeatability ± 0.5%
- Repeatability Note ± 0.5% of measured value or ± 0.066 ft/s (0.02 m/s)
- Response Time <500 ms
- Supply Power Note 9-24 VDC, (1) 5-Cell NiMH battery, internal, factory replaceable (continuous operation time: 20 hours with back-light and output off) (recharging time: 6.5 hours, power adaptor used)
- Supply Power Type DC/Battery
- Supply Voltage 9 to 24 Vdc
- Tube Wall Thickness 3 in
- Turbidity <3% by Volume of Particulate Content
- Weight 13.23 lb
- Weight Note Unit without Accessories: 2.3, Unit with Accessories in Carring Case: 13.23
The Series PUF Portable Ultrasonic Flowmeter Kit utilizes the transit-time difference for measuring flow rates in pipes non-invasively. It is a compact and lightweight instrument incorporating the latest electronics and signal processing technologies, realizing high performance and easy operation. This device is capable of 20 hours continuous operation with its built-in battery. The PUF comes with an IP67 rated carrying case with molded foam inserts to hold and protect all equipment against dust and water. The screen offers easy to read text with a convenient backlight for visual comfort. The efficient layout of the function keys add to this unit's easy to use programming. The unit comes with RS232 and USB connections to allow for easy connection to any personal computer or printer.
PRINCIPLES OF OPERATION
Two sensors are placed on the exterior of the pipe, and each transmits an ultrasonic
pulse through the pipe and fluid to the other. The velocity of the liquid flowing through
the pipes causes the pulse to accelerate or decelerate. The difference in the transit
times of the two pulses is used to calculate the flow rate. The use of transit time
allows the flowmeter to be unaffected by pressure or temperature changes.
Calibration Option available under Accessories.
For non-data logging version see Series PUB.
Product Applications
- Treated Water
- River Water
- Sea Water
- Potable Water
- Demineralized Water
- Glycol/water mix
- Hydraulic System
- Diesel Oil
