Series-659

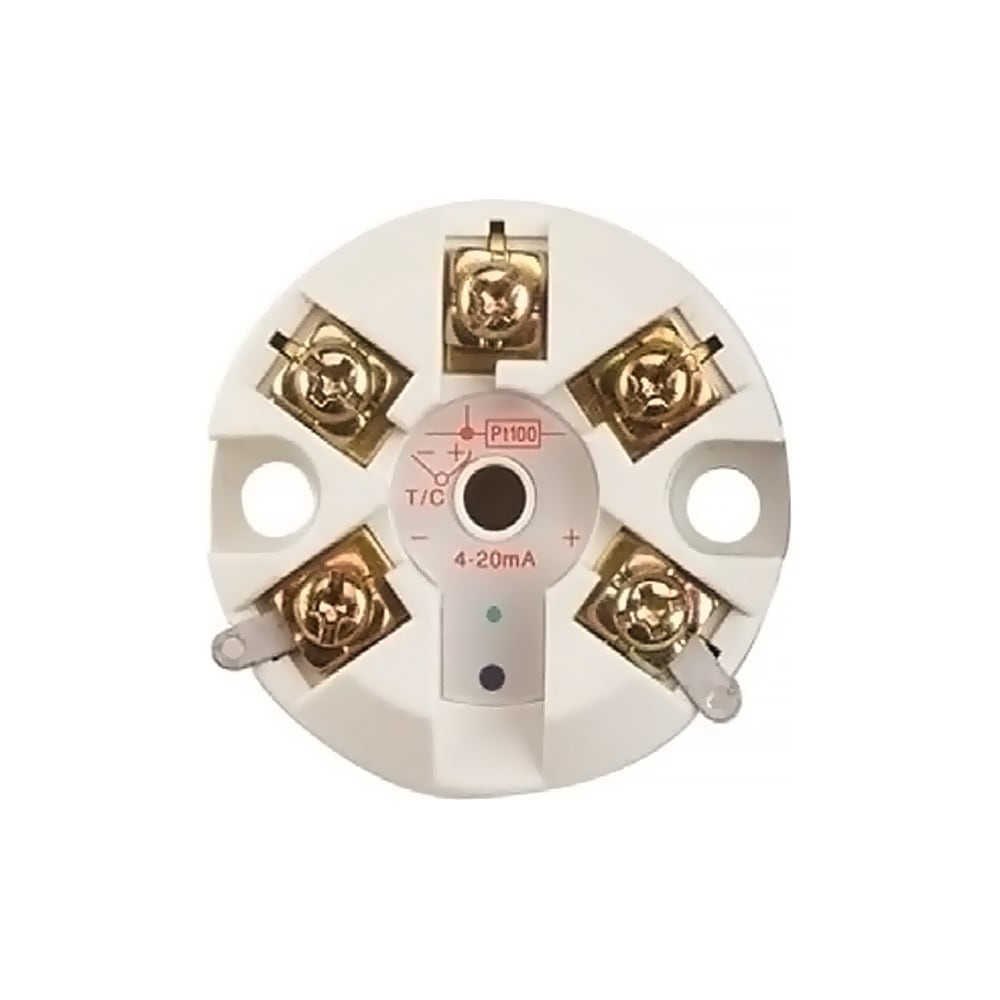

Push-Button Temp Transmitters for Thermocouple/RTD, 4-20 mA Output
Models In Stock
- Push button calibration adjustment
- Reverse polarity protection
- Standard temperature sensor head enclosure mounting
- Sensor fault LED
Series-659
From
$
196.50
Models In Stock
Product Overview
- Burnout Current Upscale 22 mA
- Compliance CE
- Current Output 4 to 20 mA
- Number of Wires 2
- Operating Temperature, Max 158 °F
- Operating Temperature, Min -4 °F
- Output Detail Linearized 4 to 20 mA, 2-wire loop powered
- Output Signal Current
- Relative Humidity 80% RH
- Sampling Rate 0.5 Hz (2 seconds between updates)
- Span Temperature Drift 0.5 µA/°C
- Weight 26 g
- Zero Temperature Drift 0.2 µA/°C
The Series 659 Push-Button Temperature Transmitters accept thermocouple (J, K, T), RTD (Pt100Ω) or thermistor input and provide a linearized 4 to 20 mA output. The transmitter is quickly ranged and calibrated by using a single on-board switch. An LED provides visual indication of sensor fault and programming mode. Models feature reverse polarity protection. Thermocouple models are also galvanically isolated and cold junction compensated.
The compact transmitter can be mounted directly within any standard thermal head for connection to the sensor. The Series 659 Transmitters are ideal for temperature measurement in boilers, burners, ducts, furnaces, refrigeration systems, food processing, tanks, chemical processing, steam generators or any other process application.
Product Applications
- The Series 659 Transmitters are ideal for temperature
measurement in boilers, burners, ducts, furnaces, refrigeration systems, food processing,
tanks, chemical processing, steam generators or any other process application. - Process applications where a 4 to 20 mA signal is required
