Series-PE-TE

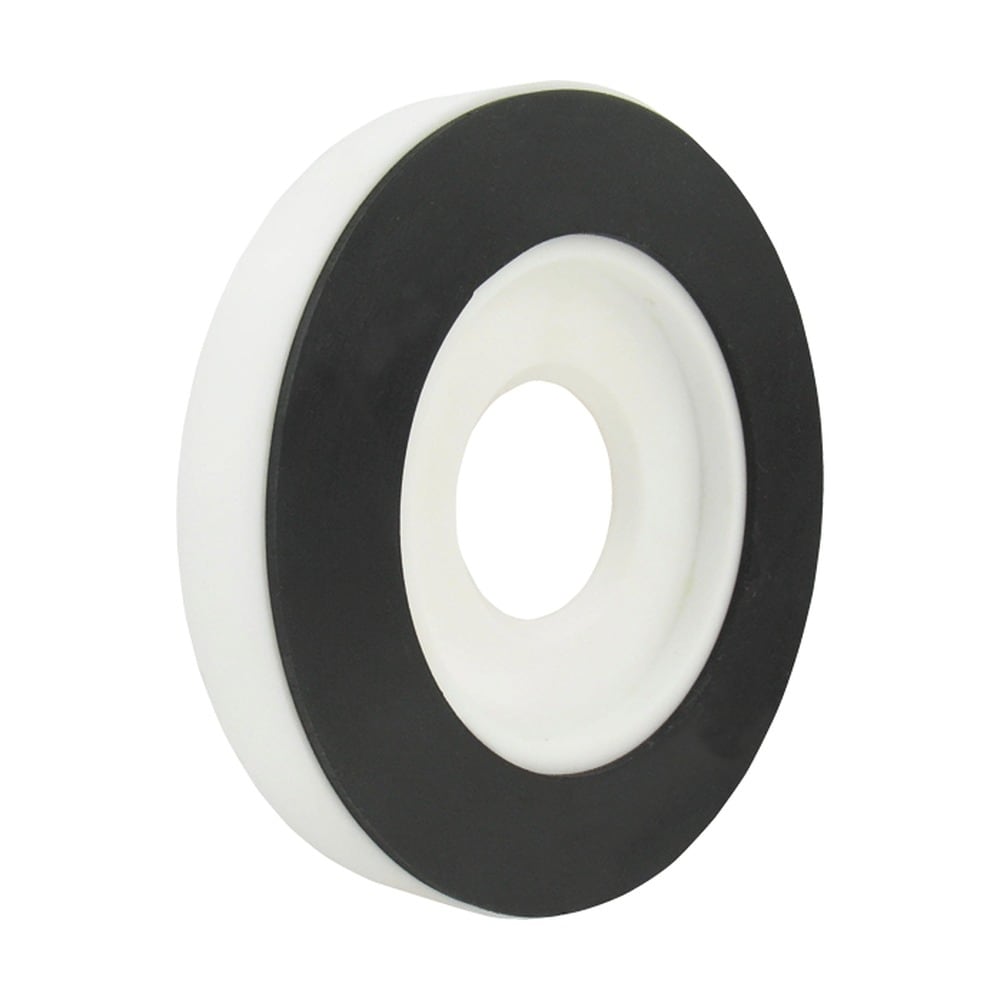

PVC/PTFE Orifice Plate Flowmeters, 1/2 to 24 in, for Gases & Liquids
- Series PE:
- Mounted with standard flanges
- Standard "corner tap" configuration
- Corrosion free material
- Simplified installation
- Built in metering taps (1/4" female NPT STD)
- Proven through a wide range of applications for accuracy and energy efficiency
- Assures long term reliability and accuracy
- Series TE:
- Excellent chemical resistance
- Weather resistant
- Flame retardant (without factory gaskets)
- Low friction (minimum wear)
- Orifice plate thickness 1/4" offering greater stability
Series-PE-TE
From
$
477.00
Product Overview
- Head Loss 1 - Beta ratio² (eg: 1-0.72 = 1-0.49 = 51% of the d.p.)
- Installation Standard Flange, 125#/150# rating
- Media Compatibility Air, Water
- Pressure Type Gauge
- Process Connection Size 1/4 in
- Process Connection Type NPT Female
- Straight Run Requirements 10 Diameters Upstream, 5 Diameters Downstream
The Series PE Orifice Plate Flowmeter offers one-piece PVC construction incorporating a unique holder or carrier ring containing metering taps and integral gaskets. Unlike a standard orifice plate, the Series PE is a true primary element including the various components for differential pressure measurement. It was designed for use wherever there is an application for a conventional flow orifice plate. It can also be used in place of other primary differential producers for efficiency and cost effectiveness. The Series PE is available in line sizes from 1/2" to 24" and used for air and most gases. It meets or exceeds ASME, AGA & ISO standards.
The Series TE Orifice Plate Flowmeter offers one-piece PTFE construction similar to the OP and PE Series orifice plates, which incorporate a unique holder or carrier ring containing metering taps and integral gaskets. Available for line sizes from 1/2" to 24", the Series TE orifice plate can be used with gases, liquids, corrosive, and high temperature fluids. The Series TE can be easily installed by slipping the unit between standard flanges (orifice flanges are not required). The Series TE was designed for use anywhere there is an application for a conventional flow orifice plate. It can also be used in place of other primary differential producers for efficiency and cost effectiveness.
Product Applications
- Fluid flow rates in building water lines
- Boiler feedwater
- Cooling water
- Combustion or compressed air
- Steam flow
