Industrial welding processes are often integral to manufacturing, construction, and other industrial operations. However, welding applications are inherently hazardous, involving risks such as gas leaks, overpressure, and inadequate shielding airflow – all of which can compromise safety and weld quality. Failures in gas delivery systems can lead to catastrophic outcomes: fires, explosions, toxic exposure, or costly weld defects.
To mitigate these risks, vigilant safety management is key. Precise monitoring of pressure and flow parameters are essential in controlling the successful delivery of shielding gases (gases used in welding to protect the weld area from atmospheric gases such as oxygen, nitrogen, and water vapor) and fuel gases (combustible gases that, when mixed with oxygen and ignited, create a high-temperature flame used for welding) in real time.
Pressure transducers and flow meters serve as vital components of these safety systems. They not only protect personnel and equipment but also help ensure compliance with rigorous standards from OSHA, NFPA, and AWS.
Understanding the Hazards of Industrial Welding
Welding hazards are more than just arc flashes or burns. In many process setups – MIG, TIG, or oxy-fuel – shielding gases like argon, CO2, or helium, and flammable gases like acetylene or propane, must be carefully regulated. Common safety risks include:
-
Backpressure or surges damaging regulators or manifolds
Undetected leaks in hoses or fittings, posing combustion or asphyxiation risks
Insufficient gas shielding, which can compromise structural integrity of the weld
Unbalanced gas flow in robotic welding arms or automated systems
Sensors help diagnose these issues before they escalate, acting as a proactive line of defense in high-risk environments.
Pressure Sensors: Detecting Instability and Ensuring System Integrity
In industrial welding environments, pressure sensors are not just for baseline monitoring – they serve as active components in system diagnostics, performance validation, and fail-safe protection. The right pressure instrumentation ensures that gas delivery is not only present, but optimal, traceable, and safe.
Functions of Pressure Sensors in Welding Applications
-
Line Integrity Checks
- Pressure decay tests can indicate leaks in torch lines, regulators, or manifolds – something especially important in hard-to-access areas of automated systems.
- Some systems maintain distinct pressure zones for shielding gases.
- Detecting pressure spikes caused by regulator failures or fast valve closures helps identify and log dangerous anomalies.
Dual-Zone Control
Transient Response Capture

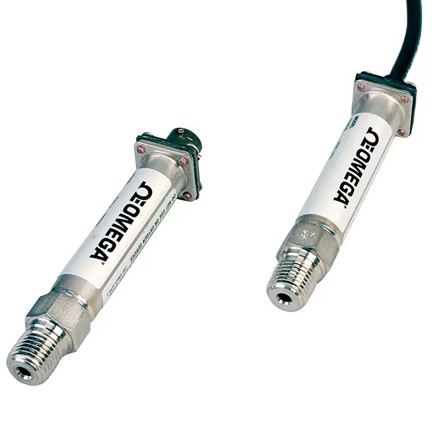

PX Series General Purpose Pressure Transducers with Adjustable Zero & Span
The PX603-PX613-PX605-PX615 Series General Purpose Pressure Transducers with Adjustable Zero & Span are all well-suited for monitoring gas supply systems in industrial welding applications.
-
Broad Pressure Range and Compatibility
- These models are available in gauge, absolute, and vacuum pressure ranges, which is essential when working with a variety of shielding or fuel gases (e.g., argon, CO₂, helium, acetylene).
- Welding gas supply systems often operate at relatively low pressures post-regulation but need to detect both high-pressure supply (pre-regulator) and low-pressure delivery (post-regulator) — these sensors can cover both ranges depending on model selection.
- The adjustable zero and span feature provides field calibration capability, which is especially useful in dynamic environments like welding where system baselines can drift over time due to temperature changes or equipment aging.
- This makes them ideal for long-term reliability and maintenance cycles, reducing the need for frequent sensor replacement.
- These transducers come with a rugged, all-welded stainless steel construction, which resists corrosion and is fully compatible with industrial welding gases — including inert and mildly corrosive gases.
- Designed for harsh environments, they can withstand vibration and temperature fluctuations commonly found near welding operations or in mobile welding rigs.
Adjustable Zero and Span
Durable Design
Flow Meters and Sensors: Guarding Gas Consistency and Welding Quality
Flow meters and sensors in welding are vital tools for ensuring process accuracy, controlling costs, and preventing defects. Inconsistent flow can compromise weld penetration, bead consistency, and oxidation levels, which may result in costly rework or even structural failure.
Functions of Flow Meters and Sensors in Welding Applications
-
Shielding Gas Envelop Verification
- Ensures that MIG or TIG arcs remain protected from ambient contamination, especially important for stainless and reactive alloys.
- Some advanced welding processes use precise gas blends (e.g., Ar/CO₂/O₂). Flow sensors ensure proper ratios across multiple channels.
- In high-volume robotic welding cells, digital mass flow meters provide remote validation of gas flow, reducing the need for manual checks.
Multi-Gas Blending Systems
Remote Calibration and Verification
Pressure Sensor Selection Guide
| Selection Factor | Why It Matters in Welding Systems |
|---|---|
| Pressure Range and Accuracy | Ensures that the sensor can properly monitor supply and delivery pressures within the system’s operating range. High accuracy is critical for detecting leaks or flow disruptions that could impact weld quality. |
| Sensor Type (Transducer vs. Transmitter) | Determines whether the device outputs raw sensor signals or conditioned signals ready for PLC/SCADA integration. Transmitters simplify system integration by providing standardized outputs like 4–20 mA. |
| Material Compatibility | Sensors must handle the specific gases used (argon, CO₂, helium, etc.) without corrosion or degradation. Stainless steel and compatible elastomers prevent contamination or failure. |
| Electrical Output Type | Choosing the right output (e.g., 4–20 mA, voltage, digital) ensures compatibility with existing controls and safety systems, reducing wiring complexity and installation costs. |
| Certifications and Compliance | Devices should meet applicable safety and industry standards (e.g., UL, CE, RoHS). This supports compliance with OSHA, NFPA, and AWS guidelines for gas handling and welding environments. |
| Environmental Protection (IP Rating) | IP-rated enclosures protect sensors from dust, moisture, and weld spatter in harsh industrial environments, reducing downtime and maintenance needs. |
| Zero and Span Adjustability | Allows fine-tuning of measurement points to suit specific system requirements, improving process control and monitoring accuracy. |
Flow Meter and Sensor Selection Guide
| Selection Factor | Why It Matters in Welding Systems |
|---|---|
| Flow Range and Accuracy | Accurate flow measurement ensures consistent delivery of shielding or purge gases. This consistency is critical to prevent porosity, oxidation, or weak welds due to improper gas flow rates. |
| Meter Type (Mass Flow vs. Volumetric) | Mass flow meters (e.g., thermal mass or Coriolis) compensate for temperature and pressure changes, providing more reliable gas delivery compared to volumetric devices in welding applications. |
| Gas Type Compatibility | Devices should be designed or configurable for the specific gases used (argon, CO₂, helium, nitrogen, etc.). Incorrect selection can lead to inaccurate readings and unsafe operating conditions. |
| Output Signal and Integration | Standardized outputs (4–20 mA, pulse, Modbus, etc.) enable seamless connection to weld system controls, alarms, or data logging systems for process validation and traceability. |
| Turndown Ratio | A wide turndown ratio allows the meter to accurately measure both low and high flow conditions without compromising accuracy — important in systems where gas demand varies by weld type. |
| Environmental Protection (IP Rating) | Ensures reliable operation in dusty, high-heat, or humid welding environments. Prevents damage from weld spatter, dust, or moisture ingress. |
| Built-In Alarms or Limit Settings | Supports safety interlocks by providing alarm functions when gas flow falls outside safe operating ranges, helping prevent weld defects and hazardous conditions. |
FMA-2600A Series Mass Flow Controller
The FMA-2600A Series Mass Flow Controller is an ideal choice for monitoring and controlling gas supply in industrial welding applications.
-
Multi-Gas Capability
- This feature lets users choose from 20 built-in gases, including commonly used welding gases like argon, carbon dioxide, helium, hydrogen, and nitrogen. It eliminates the need for recalibration or swapping devices when switching gas types — a major advantage in multi-process welding environments.
- Welding quality depends heavily on accurate and stable shielding gas flow. These mass flow controllers offer precise regulation of gas flow rates (in ranges from 10 SCCM to 1000 SLPM), helping maintain consistent weld characteristics such as bead formation and penetration.
- The built-in OLED display shows flow rate, total flow, and selected gas, giving weld technicians clear, real-time feedback. This helps with process validation and reduces the risk of gas delivery errors that can compromise weld integrity.
Precision Gas Flow Control
Real-Time Monitoring
