Series-RSV

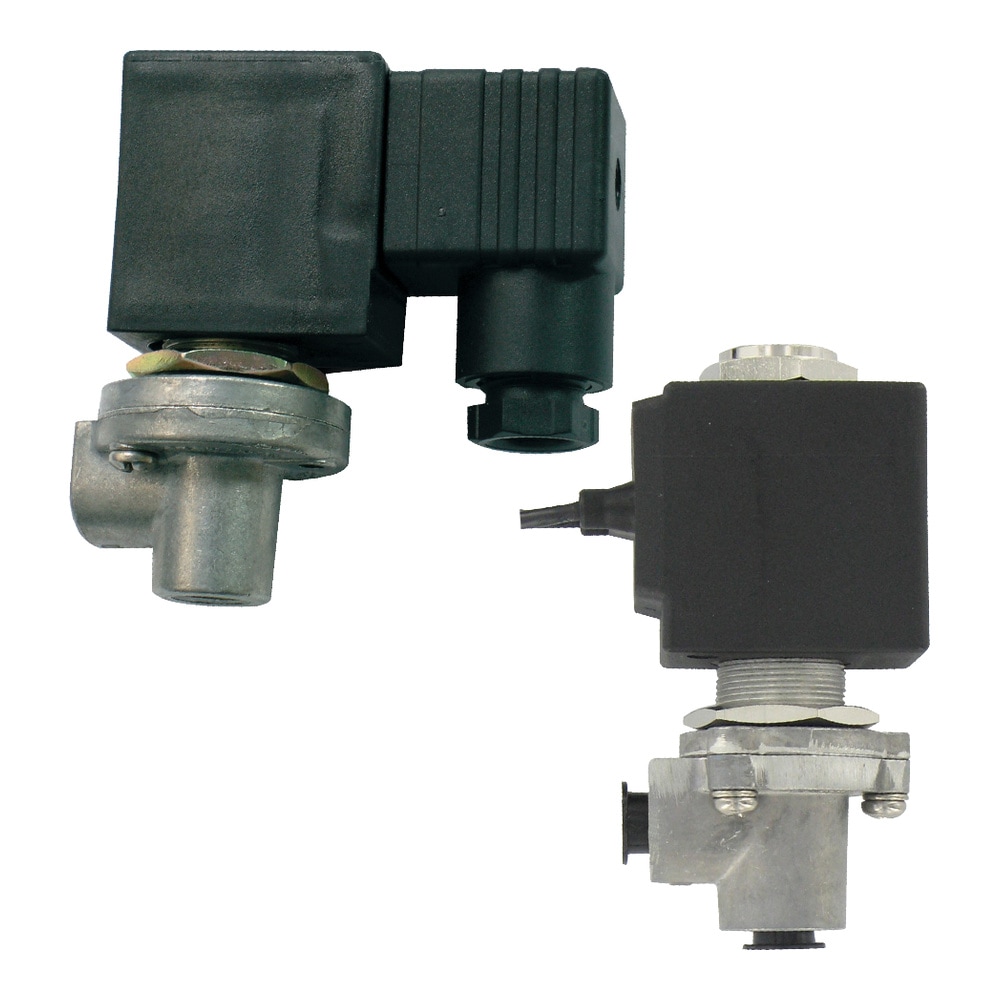

RSV Pilot Solenoid Valve for RDCV Diaphragm Control, Easy Mounting
Series-RSV
From
$
87.25
Product Overview
- Compliance CE
- Cv Factor 0.33 gal/min
- Enclosure Ratings IP66, NEMA Type 4X
- Materials, Wetted Aluminum, Buna-N (NBR), Stainless Steel
- Media Compatibility Argon, Compatible Gases, Nitrogen
- Mounting Orientation Not Position Sensitive
- Operating Temperature, Max 122 °F
- Operating Temperature, Min -4 °F
- Pneumatic Tube Length 9.8' max
- Power Consumption 12 W, inrush: 17 VA, holding: 14.5 VA
- Pressure Limits 4.4 to 124.7 psi
- Process Connection Size 1/8 in
- Process Connection Type NPT Female
- Process Temperature, Max 185 °F
- Process Temperature, Min -4 °F
- Weight 0.6 lb
The Series RSV Pilot Solenoid Valve is used to operate the Series RDCV remote type diaphragm valve. The RSV can drive all size diaphragm valves. Consult factory for mounting of RSV valves with our DCT timer boards together in one enclosure all pre-wired.
Product Applications
- For use with RDCV remote valve
