SST-QST
Split Incoloy Cartridge Heater 0.38 to 1 in OD 5 to 60 in Long
Models In Stock
- 3/8 - 1 Inch Diameter
- 5 - 60 Inch Lengths (SST)
- 5 - 36 Inch Lengths (QST)
- Sheath Temperatures up to 1600°F (871°C)
SST-QST
From
$
60.80
Models In Stock
Product Overview
- Amperage, Max 30 A
- Applications Dies, Molds, Platens, Presses
- Electrical Connection Stripped Leads
- Lead Length 12 in
- Operating Temperature, Max 871 °C
- Power Tolerance +5%, -10%
- Resistance Tolerance +10%, -5%

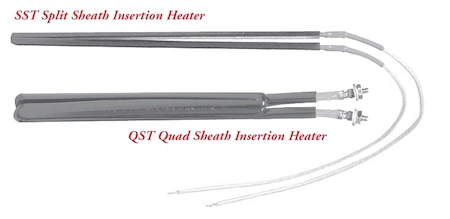

The SST and QST Split Sheath Insertion Heaters are designed especially for platen, die or mold heating applications where the holes are poorly drilled or worn through age. Independent expansion of each section of the SST and
QST when energized, creates intimate contact with the wall of the hole. Split Sheath design can Improve conductive heating and quickly insert and removed from long holes. Incoloy® Sheath gives long life at extreme temperatures with compacted to maximum density for the excellent element to sheath heat transfer and dielectric strength
Flexible Leads – SST & QST are available with flexible lead wires machine connected to the terminal pins, for temperatures to
850ËšF(450ËšC). 12” length is standard. Specify a longer length.
Screw Terminals – SST and QST are available with standard 8/32 x 1” welded nickel plated steel studs. Tight terminal connections are made using lugs, leads or bus bar. Stainless steel and other thread sizes or lengths are available.
