Series-TFP-GV

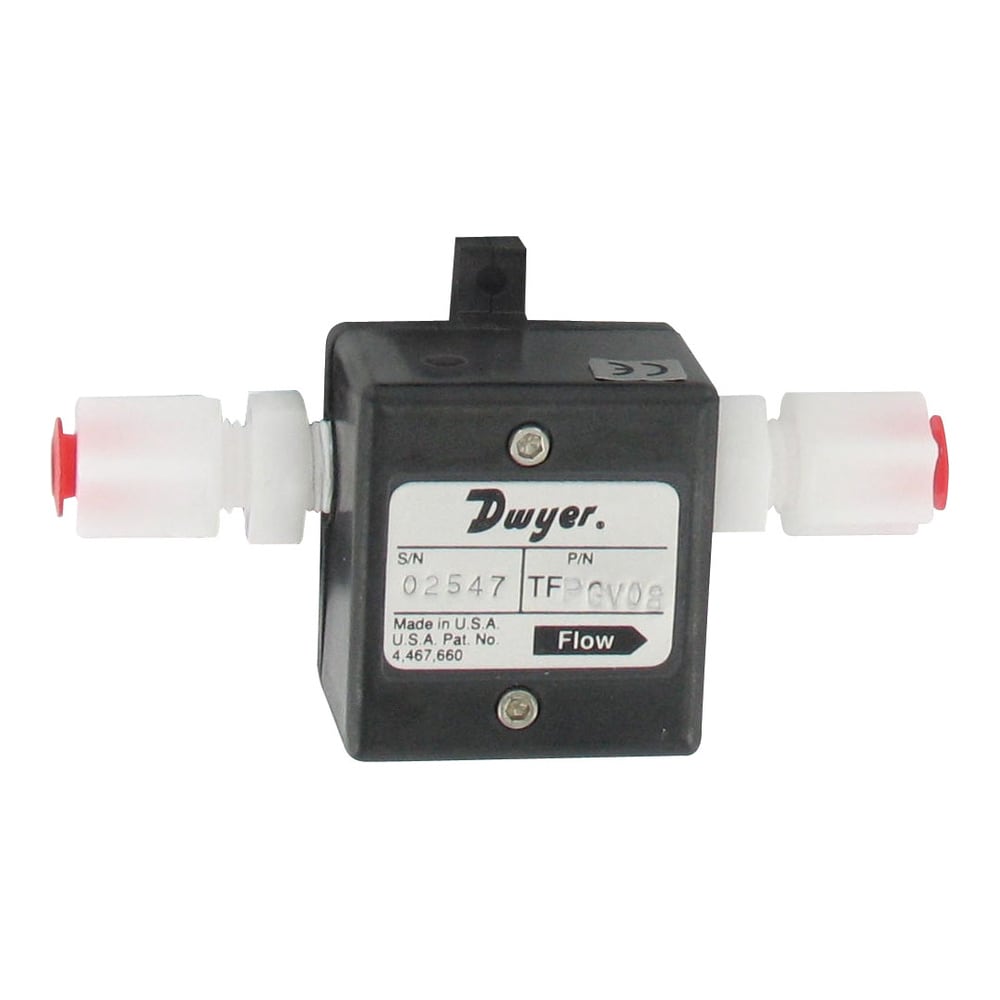

Turbine Gas Flowmeter, 0-5 Vdc Output, Power Adapter Required
- Corrosion resistant PPS body
- High repeatability with patented microturbine design
- Design accurately measures flow rates with no zero drift and no required maintenance
Series-TFP-GV
From
$
566.50
Product Overview
- Accuracy ± 3 %
- Compliance CE
- Electrical Connection Four-Pin
- Enclosure Ratings IP10, NEMA Type 1
- Linearity ± 3%
- Materials, Wetted Acetal, Epoxy, Fluoroelastomer, Glass, PPS, Sapphire
- Media Compatibility Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-corosisve Dry Gasses, Oxygen
- Operating Temperature, Max 131 °F
- Operating Temperature, Min 41 °F
- Output Detail 0 to 5 VDC: Minimum 2.5 kΩ Load
- Output Signal Voltage
- Port 1 Type Compression Fitting
- Port 2 Type Compression Fitting
- Power Consumption 35 mA @ 12 Vdc
- Pressure Limits Up to 40 psi
- Pressure Type Gauge
- Repeatability ± 0.5%
- Sensitivity ± 0.2% FS/°C
- Storage Temperature, Max 158 °F
- Storage Temperature, Min 32 °F
- Supply Power Type DC
- Supply Voltage 11.5 to 15 Vdc
- Weight 0.16 lb
The Series TFP-GV Gas Flowmeters utilize a turbine wheel and electro-optical detection to convert flow rates into a linear 0 to 5 VDC output signal for recording and data logging. A power adapter or mating cable assembly is required for operation.
Product Applications
- Industrial flow monitoring
- Commercial systems
- Laboratory equipment
