Series-TSF-DF

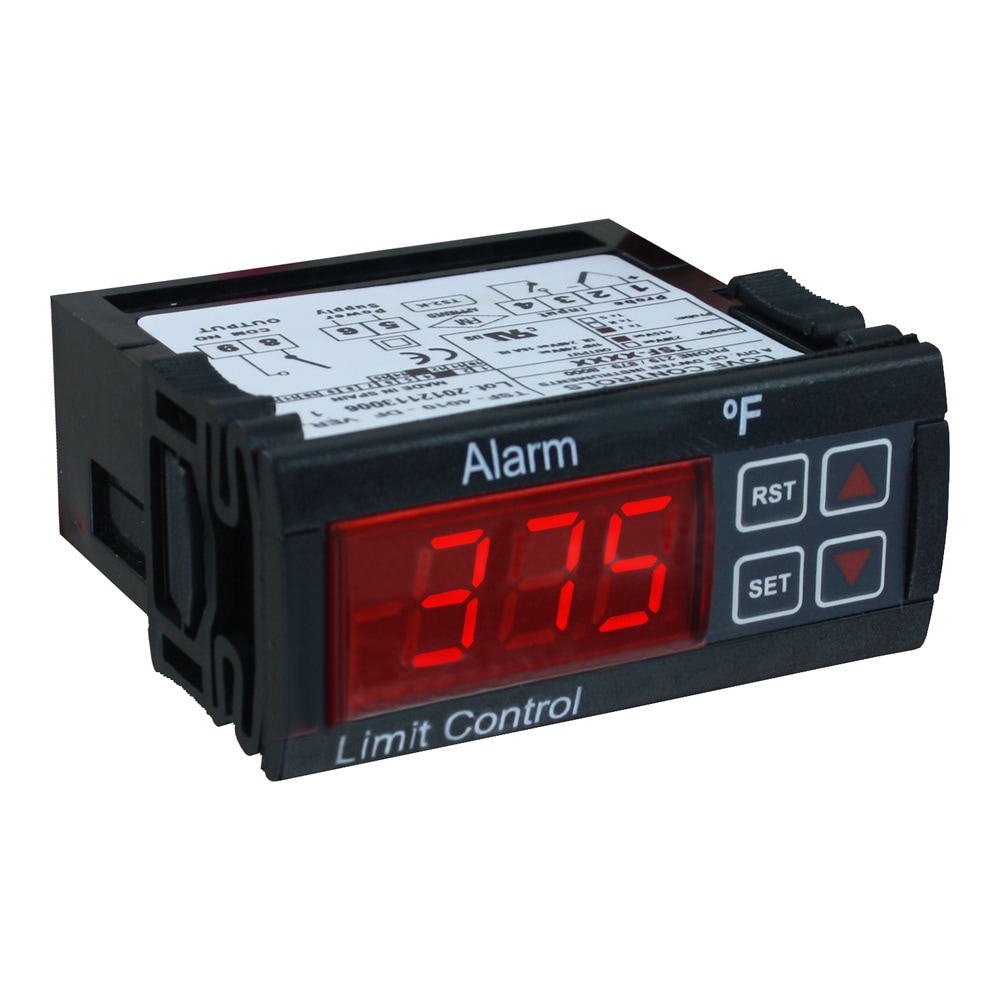

UL Thermocouple Limit Alarm w/ Relay Output for Gas Oven Control
- UL approved limit control
Series-TSF-DF
From
$
129.25
Product Overview
- Accuracy ± 1 %
- Control Output Relay
- Display Note 3-digit, red, 1/2˝ (12.7 mm) digits, plus sign.
- Display Type LED
- Enclosure Ratings IP64
- Horsepower Rating 1 hp
- Memory Backup Non-Volatile
- Number of Digits 3
- Operating Temperature, Max 140 °F
- Operating Temperature, Min 32 °F
- Power Consumption 4 VA @ 230 Vac
- Storage Temperature, Max 176 °F
- Storage Temperature, Min -4 °F
- Switch Note NO SPST relay rated 16 A @ 240 VAC resistive
- Switch Rating 16 A @ 240 Vac
- Switch Type SPST NO
- Temperature Sensor Type Thermocouple
- Weight 2.3 oz
The Series TSF-DF Thermocouple Limit Alarm is a UL approved
temperature limit control that provides visual alarm status along with a relay
output. The Series TSF-DF controls have a built in reset button on the front panel or can
accept an external reset signal.
Program settings on model TSF-DF controls cannot be changed through the buttons on the
device. It is necessary to purchase a model TSF-MDF and a model TS2-K in addition to the
model TSF-DF. Desired program parameters are entered on a TSF-MDF programming
control. Using the TS2-K configuration key, the parameters can be easily copied from the
TSF-MDF and transferred to the TSF-DF Limit Alarms.
Product Applications
- Gas fired oven and burner control
