Series-RHP-E-N

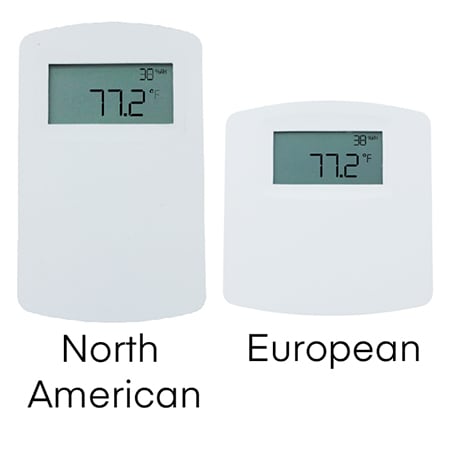

Wall Mount Humidity, Temp & Dew Point Transmitter - Capacitive Sensor
- Reduced installation cost with combined humidity/dew point and temperature sensing
- Wide application environments from a large selection of temperature sensors and 2% and 3% accuracies
- Reduced inventory with field selectable output
Series-RHP-E-N
From
$
123.55
Can't find the right model?
Use our custom configurator to fine tune your product
Product Overview
- Applications HVAC
- Compliance CE
- Current Output Range 4 to 20 mA
- Dew Point Temperature Input Range -20 to 140°F, 0 to 100°F, 40 to 90°F, -4 to 140°F, Field-Selectable
- Electrical Connection Screw Terminal
- Enclosure Ratings IP20
- Hysteresis ± 0.8%
- Materials Polycarbonate
- Operating Temperature, Max 140 °F
- Operating Temperature, Min -40 °F
- Process Temperature, Max 140 °F
- Process Temperature, Min -4 °F
- Relative Humidity 0 to 100% RH
- Repeatability ± 0.1%
- Response Time 8 s
- RH Sensor Drift <0.25% RH/year
- Storage Temperature, Max 176 °F
- Storage Temperature, Min -40 °F
- Supply Power Note 4-20 mA loop powered outputs: 10-35 VDC; 0-5/10V outputs: 15-35 VDC or 15-29 VAC
- Supply Power Type AC/DC
- Supply Voltage 10 to 35 Vdc, 15 to 35 Vdc /15 to 29 Vac
- Voltage Output Range 0 to 5 Vdc, 0 to 10 Vdc
- Weight 4.4 oz
The Series RHP-E/N Wall Mount Humidity/Temperature/Dew Point Transmitter is the most versatile room transmitter on the market. The stylish housing is well vented to provide air flow across the sensor to improve measurement accuracy. The humidity and the dew point are measured using a capacitive polymer sensor that completely recovers from 100% saturation. The humidity and dew point can have either a current or voltage output, while the optional temperature output can be a current, voltage, RTD or thermistor. For models with current or voltage for the temperature output, the temperature range is field selectable.
For models with resistive thermistors or RTD outputs, click here for Resistance vs. Temperature Table.
Product Applications
- Air economizers
- Room comfort monitoring
- Greenhouse monitoring
