Series-WD3
Water Leak Detector for AHUs & Data Centers – Adjustable Height, Alerts
Models In Stock
Series-WD3
From
$
56.75
Models In Stock
Product Overview
- Compliance CE
- Materials ABS
- Media Compatibility Acid Solutions, Conductive Liquids, Saltwater, Water
- Operating Temperature, Max 122 °F
- Operating Temperature, Min 32 °F
- Sensing Gap 1/32" min
- Tape Length 0 ft
- Weight 4.85 oz
- Wire Gauge 22 AWG

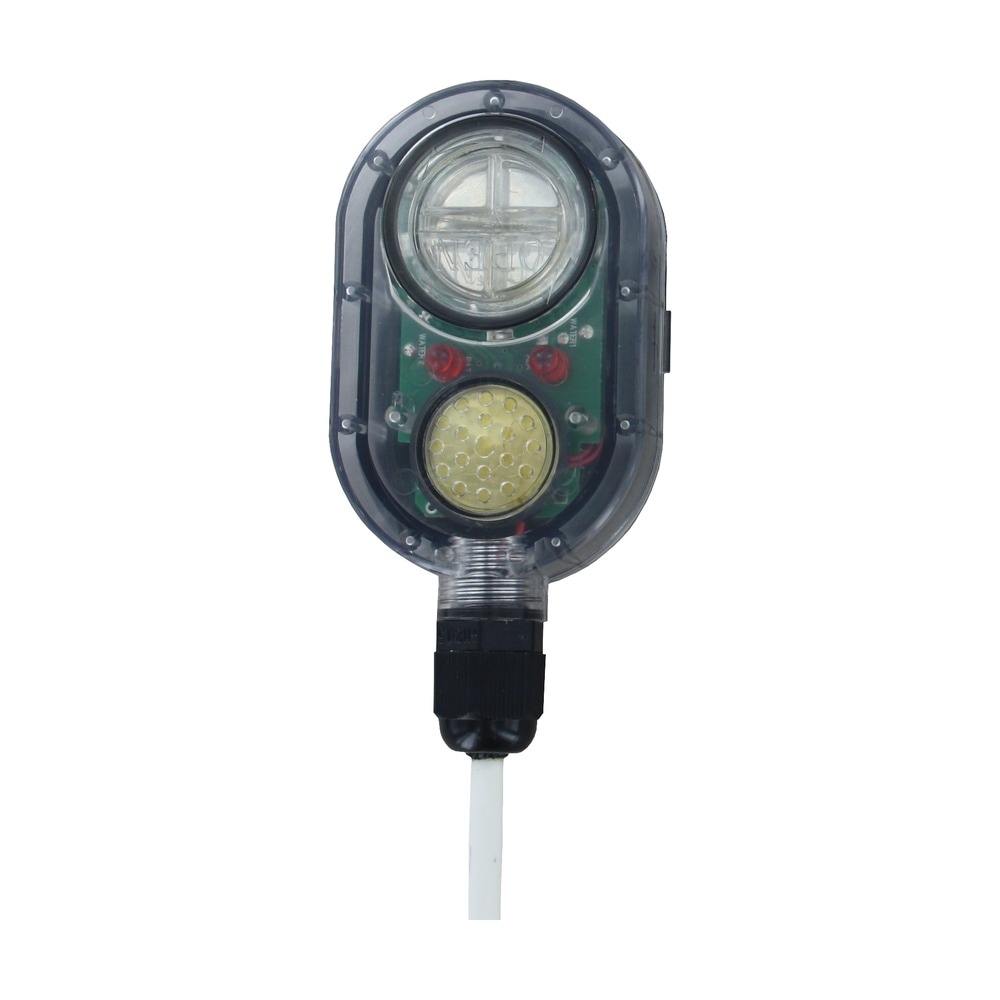

The Series WD3 Water Leak Detectors protect equipment from water damage by detecting the presence of water in drip pans in air handler units, under raised floors in data centers, or on floors around sump pumps and drains. Water is detected once it reaches a level that bridges the two conductive strips on the bottom of the housing. Depending on the model ordered, audible and visual alerts provide local indication of the alarm condition and an internal switch will give remote indication or control to prevent further build up of water.

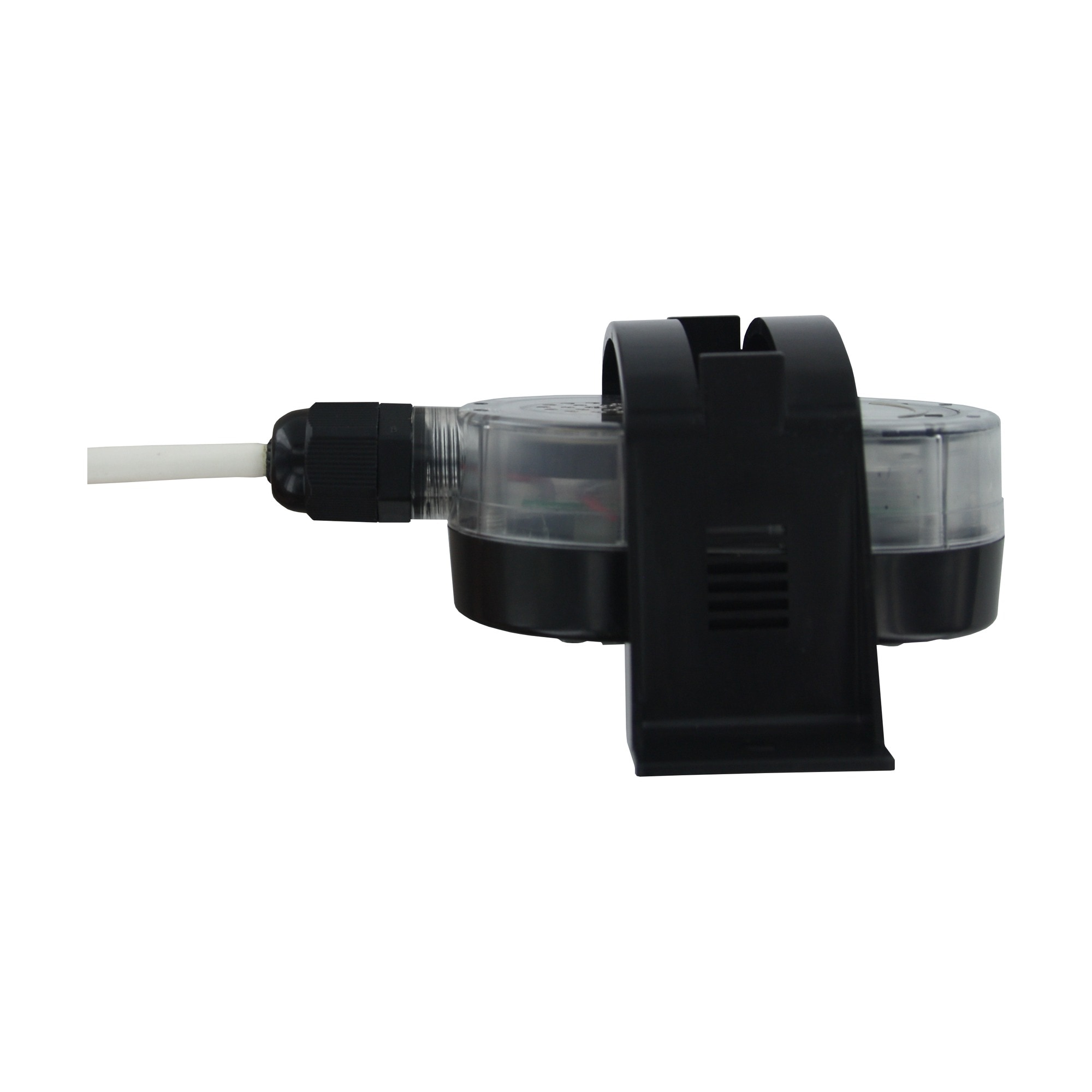

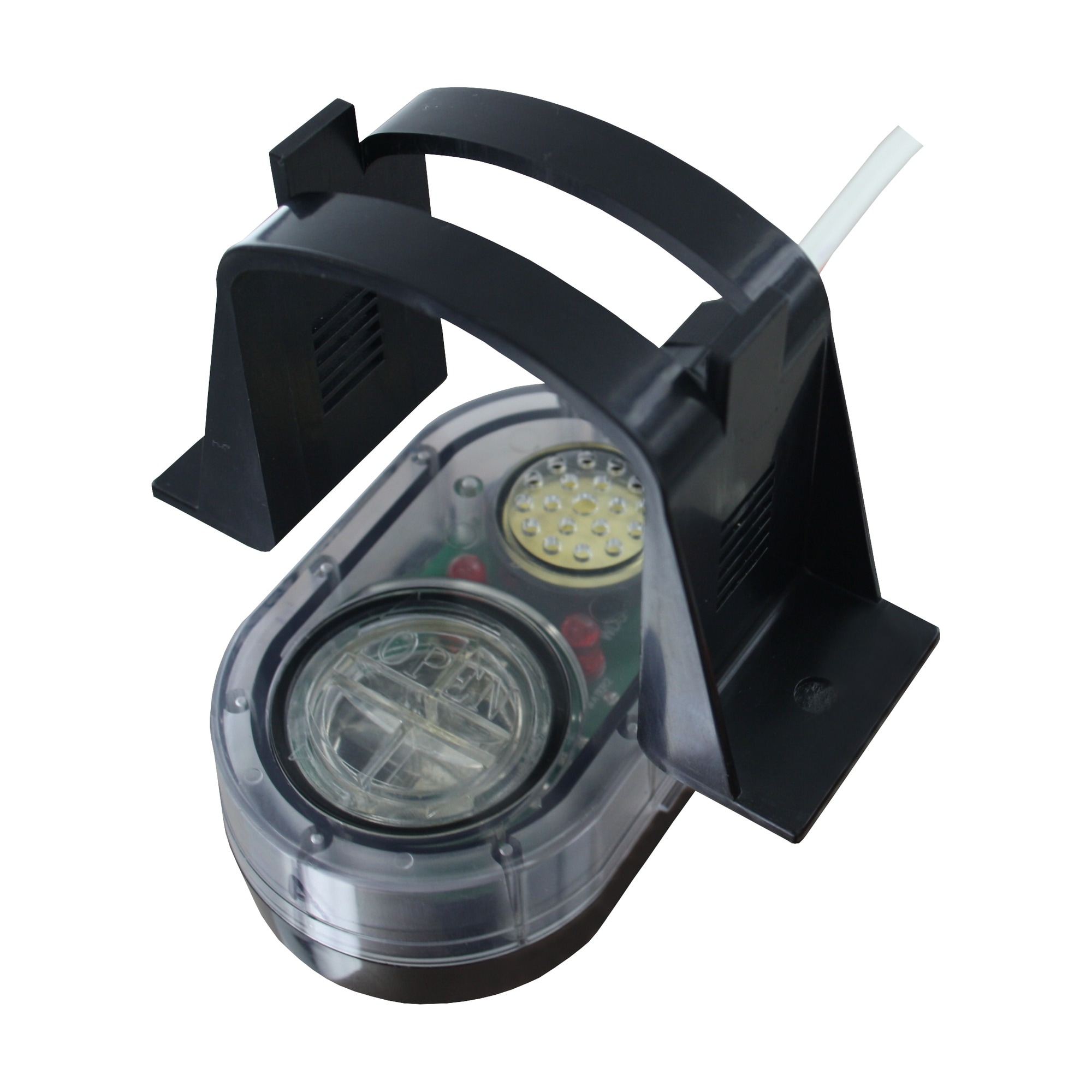

For applications where power is not available, the Model WD3-BP-D1-A is battery powered. Otherwise, either AC or DC supply voltages can be used to power the water detector. The sensing height can be adjusted to as low as 1/32" using the included adjustable mounting bracket. The mounting bracket can attach to any flat surface by either using the attached adhesive strips or mounting screws.
Product Applications
- AHU drip pans
- Radiant floors
- Data centers
- Sump pumps
- Drains
