Series-647

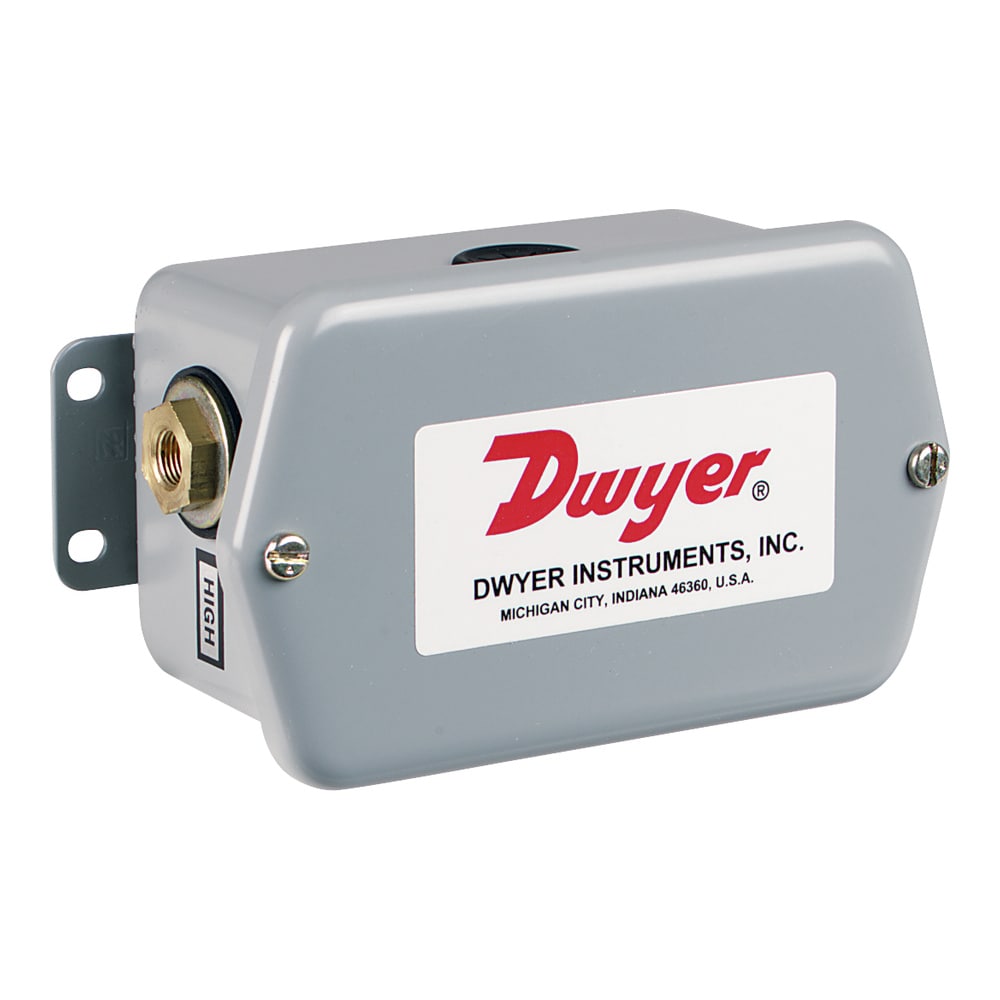

Wet/Wet Differential Pressure Transmitter, 4-20 mA, Temp Compensated
- Versatile for liquid or gas supports designs requiring more precise measurements in support of application
- Temperature compensated improves performance of device for accurate measurement under different operating environments
- Output signal provides capability to interface with automation systems to centralize monitoring
Series-647
From
$
613.50
Product Overview
- Display Type N/A
- Electrical Connection Screw Terminal
- Enclosure Ratings IP56, NEMA Type 4
- Long Term Stability ± 1.5% FS output/year
- Materials Epoxy, Steel
- Media Compatibility Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Oxygen, Steam
- Number of Wires 2
- Operating Temperature, Max 50 °C
- Operating Temperature, Min 0 °C
- Pressure Type Differential
- Process Connection Size 1/8 in
- Process Connection Type NPT Female
- Span Adjustment Adjustable
- Thermal Effects Zero: ± 0.05% FS/°F, Span: ± 0.05% rdg/°F
- Weight 397 g
- Zero Setting Adjustable Range Adjustable, ± 10%
Monitor differential pressure in air/liquid flow systems, HVAC automation, pneumatic systems and process control with the Series 647 Wet/Wet Differential Pressure Transmitter. Units are temperature compensated and provide a 4 to 20 mA output signal which can be interfaced with chart recorders, data loggers and computerized monitoring and control systems.
Calibration Option available under Accessories.
Product Applications
- Flow
- Process control
- HVAC automation
- Pneumatic systems
