iProx-Series
Cutler-Hammer 2-wire AC and 3-wire DC Inductive Proximity Sensors
Models In Stock
- Available in AC 2-Wire, DC 3-Wire
- Up To 29mm Sensing Range
- Designed for High Temperature, High Pressure Washdown
- Ideal for Intense Shock and Vibration Applications
iProx-Series
From
C$
167.18
Models In Stock
Product Overview

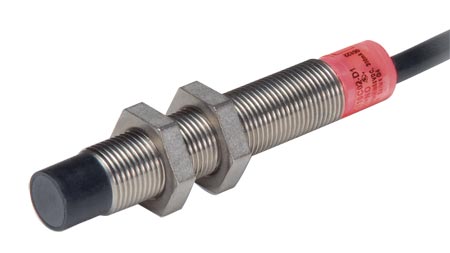

The Cutler-Hammer® iProx Series represents the highest performance, most versatile tubular inductive sensor offered by Omega. By utilizing an embedded microprocessor and exclusive SmartSense™ technology, iProx can sense up to three times farther than typical sensors of its class. Both shielded and unshielded versions of iProx feature extended sensing ranges. This allows the sensor to be mounted farther from the target, thereby reducing the potential for target impacts and increasing the sensing reliability of your application. With extended sensing range, quality construction and very high noise immunity, iProx is the ideal choice for even the most demanding inductive sensing applications.
TYPICAL APPLICATIONS
2-WIRE SENSORS
Input Voltage: 20 to 132 Vac
Load Current: 12 mm: 5 to 300 mA; 200 mA >50°C
Leakage Current: ≤1.7 mA @ 0°C, 2.0 mA @ -40°C
Voltage Drop: <5 Vac
Protection: None
Switching Hysteresis: <15% rated sensing distance
Repeat Accuracy
Shielded Models: <1% sensing distance
Unshielded Models: <3% sensing distance
Surge Capacity: 3A/30 ms
Temperature Range: -40 to 70°C (-40 to 158°F)
Material of Construction: 303 SS; End bells: Polycarbonate; Face caps: Ryton®; Cable: AWM Style 20387 (PVC)
Vibration and Shock Vibration: 10 to 55 Hz, 1 mm Amplitude, IEC 60068-2-6; Shock: 30g, 11 mS per IEC 68-2-27
Indicator LED: 360° viewable LED
Enclosure Ratings: NEMA 4, 4X, 6, 6P, 12 and 13 (IP67)
Response Time 2-Wire Sensors:
Factory Default Mode: Shipped in 'side by side mode' by default (20 V/m)
Side by Side: 30 Hz (10 V/m)
High Noise Immunity Mode: 10 Hz (>20 V/m)
3-WIRE SENSORS
Input Voltage: 6 to 48 Vdc
Load Current: ≤500 mA @ 6 to 30 Vdc; ≤300 mA @ 32 to 48 Vdc Leakage Current: ≤150 µA Voltage Drop:≤2.5 Vdc Burden Current: ≤15 mA
Protection: Auto Reset
Switching Hysteresis: <15% rated sensing distance
Repeat Accuracy:
Shielded Models: <1% sensing distance
Unshielded Models: < 3% sensing distance
Temperature Range: -40 to 70°C(-40 to 158°F)
Material of Construction: 303 SS;
End bells: Polycarbonate; Face caps: Ryton®; Cable: AWM Style 20387 (PVC)
Vibration and Shock Vibration: 10 to 55Hz, 1 mm Amplitude, IEC 60068-2-6; Shock: 30g, 11 mS per IEC 68-2-27
Indicator LED: 360° viewable LED
Enclosure Ratings: NEMA 4, 4X, 6, 6P, 12 and 13 (IP67)
Response Time 3-Wire Sensors:
Factory Default Mode:
Shielded:
12 mm: 580 Hz (10 V/m)
18 mm: 390 Hz (10 V/m)
30 mm: 240 Hz (10 V/m)
Unshielded:
12 mm: 300 Hz (10 V/m)
18 mm: 150 Hz (10 V/m)
30 mm: 145 Hz (10 V/m)
Side by Side: 50 Hz (20 V/m)
High Noise Immunity Mode: 10 Hz (>20 V/m)
TYPICAL APPLICATIONS
- Automotive
- Machine Tool
- Material Handling
- Metalworking
2-WIRE SENSORS
Input Voltage: 20 to 132 Vac
Load Current: 12 mm: 5 to 300 mA; 200 mA >50°C
Leakage Current: ≤1.7 mA @ 0°C, 2.0 mA @ -40°C
Voltage Drop: <5 Vac
Protection: None
Switching Hysteresis: <15% rated sensing distance
Repeat Accuracy
Shielded Models: <1% sensing distance
Unshielded Models: <3% sensing distance
Surge Capacity: 3A/30 ms
Temperature Range: -40 to 70°C (-40 to 158°F)
Material of Construction: 303 SS; End bells: Polycarbonate; Face caps: Ryton®; Cable: AWM Style 20387 (PVC)
Vibration and Shock Vibration: 10 to 55 Hz, 1 mm Amplitude, IEC 60068-2-6; Shock: 30g, 11 mS per IEC 68-2-27
Indicator LED: 360° viewable LED
Enclosure Ratings: NEMA 4, 4X, 6, 6P, 12 and 13 (IP67)
Response Time 2-Wire Sensors:
Factory Default Mode: Shipped in 'side by side mode' by default (20 V/m)
Side by Side: 30 Hz (10 V/m)
High Noise Immunity Mode: 10 Hz (>20 V/m)
3-WIRE SENSORS
Input Voltage: 6 to 48 Vdc
Load Current: ≤500 mA @ 6 to 30 Vdc; ≤300 mA @ 32 to 48 Vdc Leakage Current: ≤150 µA Voltage Drop:≤2.5 Vdc Burden Current: ≤15 mA
Protection: Auto Reset
Switching Hysteresis: <15% rated sensing distance
Repeat Accuracy:
Shielded Models: <1% sensing distance
Unshielded Models: < 3% sensing distance
Temperature Range: -40 to 70°C(-40 to 158°F)
Material of Construction: 303 SS;
End bells: Polycarbonate; Face caps: Ryton®; Cable: AWM Style 20387 (PVC)
Vibration and Shock Vibration: 10 to 55Hz, 1 mm Amplitude, IEC 60068-2-6; Shock: 30g, 11 mS per IEC 68-2-27
Indicator LED: 360° viewable LED
Enclosure Ratings: NEMA 4, 4X, 6, 6P, 12 and 13 (IP67)
Response Time 3-Wire Sensors:
Factory Default Mode:
Shielded:
12 mm: 580 Hz (10 V/m)
18 mm: 390 Hz (10 V/m)
30 mm: 240 Hz (10 V/m)
Unshielded:
12 mm: 300 Hz (10 V/m)
18 mm: 150 Hz (10 V/m)
30 mm: 145 Hz (10 V/m)
Side by Side: 50 Hz (20 V/m)
High Noise Immunity Mode: 10 Hz (>20 V/m)
Show Ratings & Reviews
Rated 5 out of
5
by
jiggs86 from
Great proximity sensor, works exactly as described
I bought this a month ago and installed on a light fairway mower to turn reels on when cutting units are dropped. The iprox I purchased had upto 1" range. It's actually got about 1 1/8" range. No problems working in a high vibration, wet environment.
Date published: 2016-07-20
Hi, This proximity sensor has an electrical output?
Thank you for your question. The output is whatever you apply to power them as indicated in data sheet.
Date published: 2020-09-09
