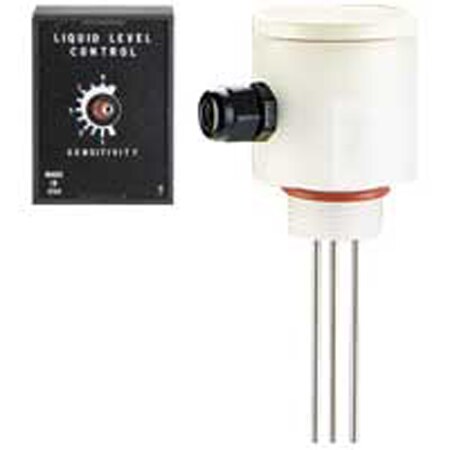

DPL110
Dual point level switch.
Choose a Variant
Switch Type
Added to Your Shopping Cart
Configuration complete.
Please add to cart to keep it or exit the configuration
Please add to cart to keep it or exit the configuration
Failed to Save Configurations, Click on Configure Button Start Again
Product Specs
<< See all Product Models| Brand |
 |
| Cable Length | 10 ft |
| Enclosure Ratings | IP67, NEMA Type 6 |
| Materials, Wetted | 316 Stainless Steel, Polypropylene |
| Media Compatibility | Alkaline solutions, Dilute Acids, Hydraulic Oil, Light Oil, Oil, Solvents, Water, Water-based fluids |
| Mounting Orientation | Sensor Head: 1" Male NPT, Controller: Standard octal socket or 35 mm DIN rail |
| Operating Temperature, Max | 212 °F |
| Pressure Limits | Up to 30 psi |
| Pressure Type | Gauge |
| Probe Diameter | 0.125 in |
| Probe Length | 24 in |
| Probe Length, Max | 72 in |
| Resistance Selection | N/A |
| Sensor Voltage | 12 Vac |
| Supply Power Type | AC |
| Supply Voltage | 120 Vac |
| Switch Rating | 5A @ 240 Vac |
| Switch Type | SPDT NO/NC, Selectable |
| Weight | 1.5 lb |
| Weight Note | Controller: 1.0 ; Probe Assembly: 1.5 |
| See All Specs | |
