Series-HFO

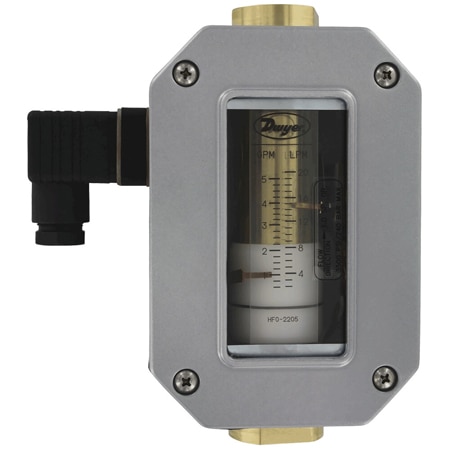

HFO In-Line Flow Alarms with NPT Connections for Various Applications
- Provides two 10 A SPDT limit switches with field adjustable alarm settings for application control and integral direct reading scale provides local indication of flow rate
- Increased application versatility with no inlet or outlet straight plumbing requirement and can be mounted horizontally, vertically, or inverted
- Outdoor or harsh environment installation capable with rugged cast aluminum construction and NEMA 4X (IP65) enclosure
Series-HFO
Depuis
C$
0.00
L'aperçu du produit
- Accuracy ± 2 %, ± 5% with transitional flow
- Enclosure Ratings IP66, NEMA Type 4X
- Mounting Any Position
- Operating Temperature, Max 170 °F
- Operating Temperature, Min 0 °F
- Pressure Type Gauge
- Process Connection Type NPT Female
- Repeatability ± 1%
- Switch Note 10 A @ 250 VAC; 0.5 A @ 125 VDC, (resistive)
- Switch Rating 10 A @ 250 Vac; 0.5 A @ 125 Vdc
- Switch Type SPDT NO/NC, Selectable
- Viscosity Range 500 SSU
The Series HFO In-Line Flow Alarms provide continuous monitoring and control of flow rate levels. The flow alarm can be configured to open or close a contact for an increasing or decreasing set point. Available in 1/4", 1/2", 1" or 1-1/2" female NPT process connections, in aluminum, brass or 304 SS body.
Product Applications
- Waste water processing
- Lubrication systems
- Process control
- Solar systems
- Drain lines
- Pump testing
