Series-2000-SP
Magnehelic® Differential Pressure Gage, Setpoint indicator Red LED, Adjustable
Series-2000-SP
From
C$
398.97
Product Overview
- Accuracy Note ± 2% (-HA model ± 1) of FS (± 3% (-HA ± 1.5%) on -0, -100PA, -125PA, -10MM and ± 4% (-HA ± 2%) on -00, -60PA, -6MM ranges), throughout range at 70°F (21.1°C).
- Additional Features 1 LED Set Point Indicator
- Dial Dia 4 in
- Dual false
- Enclosure Ratings IP67
- Materials Aluminum, Acrylic
- Materials, Wetted Consult Factory
- Media Compatibility Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases
- Mounting Orientation Vertical Diaphragm
- Operating Temperature, Max 140 °F
- Operating Temperature, Min 20 °F
- Pressure Limits -20 inHg to 80 psi
- Pressure, Min 0 inH₂O
- Pressure Type Differential
- Process Connection Note 1/8˝ female NPT duplicate high and low pressure taps - one pair side and one pair back.
- Process Connection Size 1/8 in
- Process Connection Type NPT Female
- Safety Features Relief plug opens at approximately 25 psig (1.72 bar), standard gages only.
- Weight 510 g

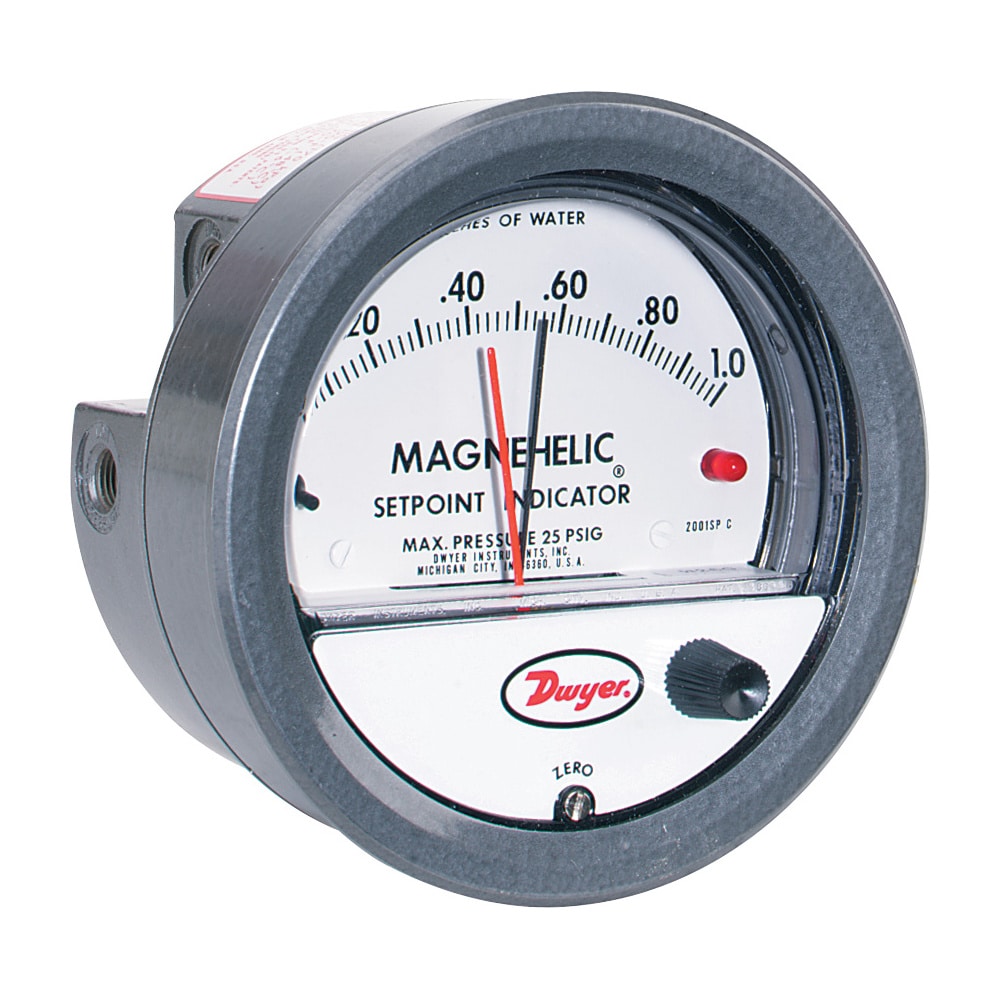

Series 2000-SP Magnehelic® Differential Pressure Gage has a bright red LED on the right of the scale showing when setpoint is reached. Field adjustable from gage face, unit operates on 12-24 VDC. Requires MP or HP style cover and bezel.
NIST CALIBRATION available in Product Configurator.
