Series-MDS

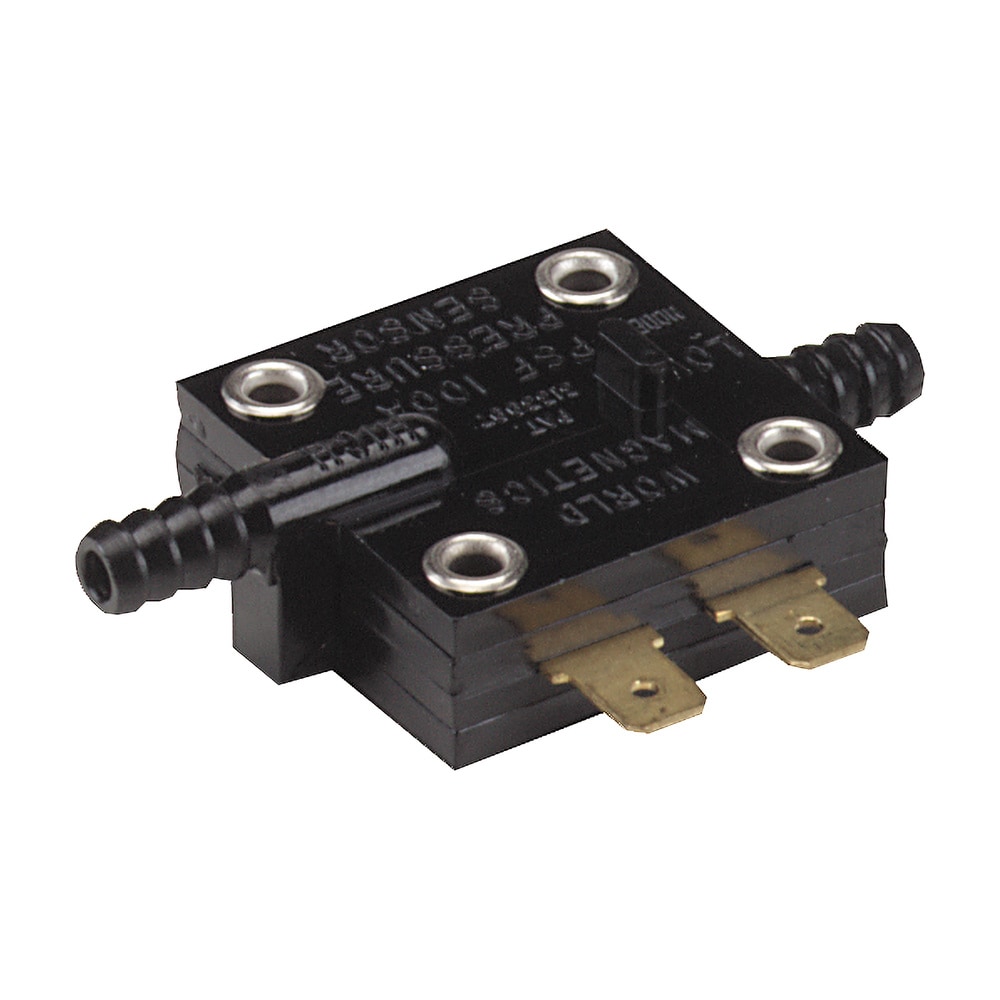

Mini Pressure Switch, Dual Diaphragm, 20M Cycle Life, OEM – 50 Min Order
- Low cost, long service life and fast response time is suitable for a wide range of OEM uses
- Lightweight but shock and vibration resistant for tough applications
- Gold contacts help ensure a clean connection without dirt or oxidation
Can't find the right model?
Use our custom configurator to fine tune your product
Product Overview
- Applications Fluid Measurement and Control
- Electrical Connection Spade Lugs
- Materials Polycarbonate, Polyurethane
- Media Compatibility Consult Factory
- Operating Temperature, Max 150 °F
- Operating Temperature, Min 40 °F
- Operating Voltage, Max 30 Vac/Vdc
- Operating Voltage Note AC/DC - 30 V or less with resistive load.
- Process Connection Note Two barbed ports for use with 1/8˝-3/16˝ ID tubing
- Process Connection Size 3/16 in
- Process Connection Type Barbed Fitting
- Proof Pressure Up to 8 psi
- Switch Note SPST normally open, Gold contact switch providing maximum 40 mA resistive load allowing for life in excess of 20 million cycles
- Switch Rating 40 mA
- Switch Type SPST
- Weight 10 g
The Series MDS Miniature Pressure Switch is designed with a double diaphragm to protect false actuation due to shock and vibration. This low cost pressure switch has a minimum 20 million cycle life expectancy, and an extremely fast response time, making this an ideal device for OEM orders.
50 PIECE MINIMUM ORDER.
Product Applications
- Air proving
- Cleaning and purification
- Ventilation flow
- Heavy equipment and machinery
- Pressure monitoring
- Exhaust ducts
