Series-MVS

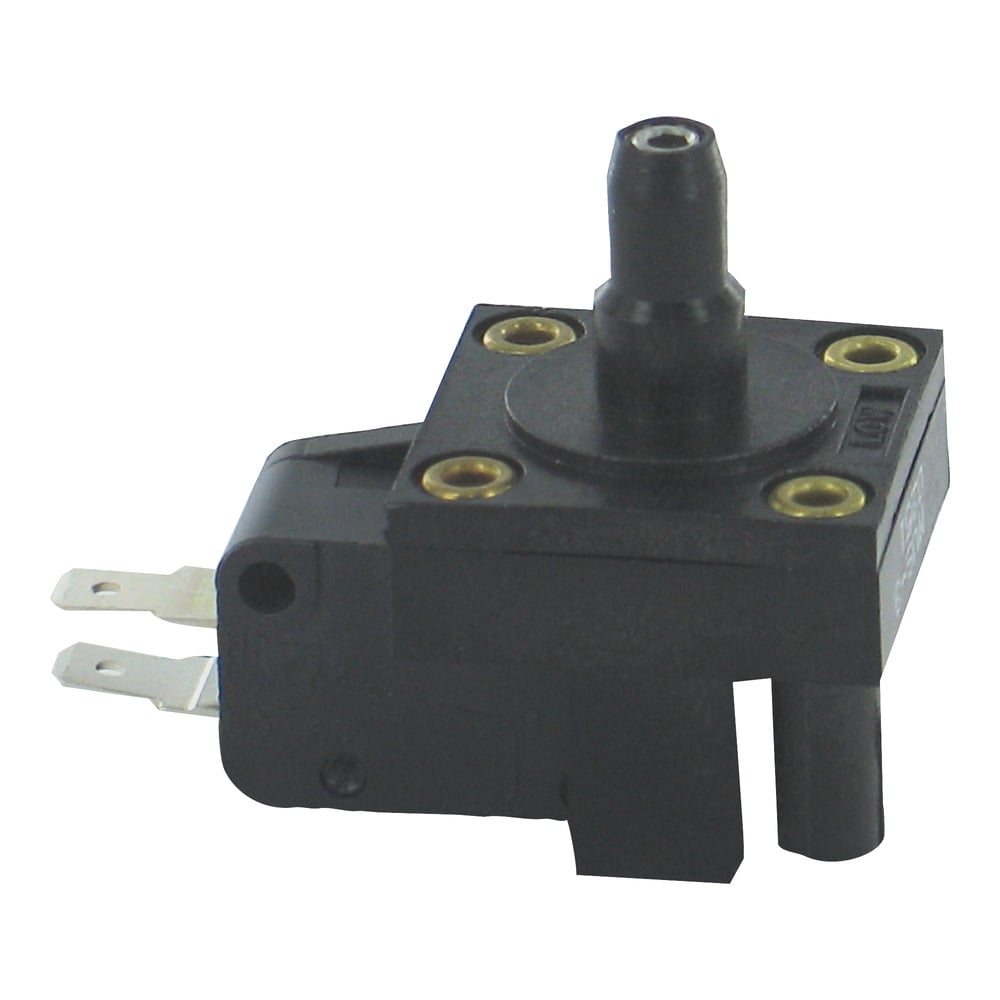

Mini Vacuum Switch for OEM – 10M cycles, fast response, ideal for HVAC
- High switch cycle means long life for extended duty applications
Series-MVS
From
C$
0.00
Can't find the right model?
Use our custom configurator to fine tune your product
Product Overview
- Applications HVAC, Medical, Pump Control
- Compliance cULus
- Contacts Silver with Brass Terminals
- Materials, Wetted Polyurethane
- Media Compatibility Air, Alkaline solutions, Argon, Carbon dioxide, Dilute Acids, Helium, Nitrogen, Oxygen, Steam, Water, Water-based fluids
- Mounting Orientation Panel Mount
- Operating Temperature, Max 150 °F
- Operating Temperature, Min 40 °F
- Pressure Type Gauge
- Repeatability ± 20%
- Switch Type SPDT NO/NC, Selectable
- Weight 0.671 oz
Compact, lightweight, and adjustable, the Series MVS Miniature Vacuum Switch is specially designed for OEM applications. This low cost switch has a minimum life expectancy of 10 million cycles and has an extremely fast response time. Typical applications for the MVS are HVAC, home appliance, dairy systems, medical, office equipment, and pump control.
NOTE: 50 PIECE MINIMUM ORDER.
Product Applications
- OEM
- HVAC applications
- Medical equipment
- Dairy equipment
- Pump control
