Series-SVE

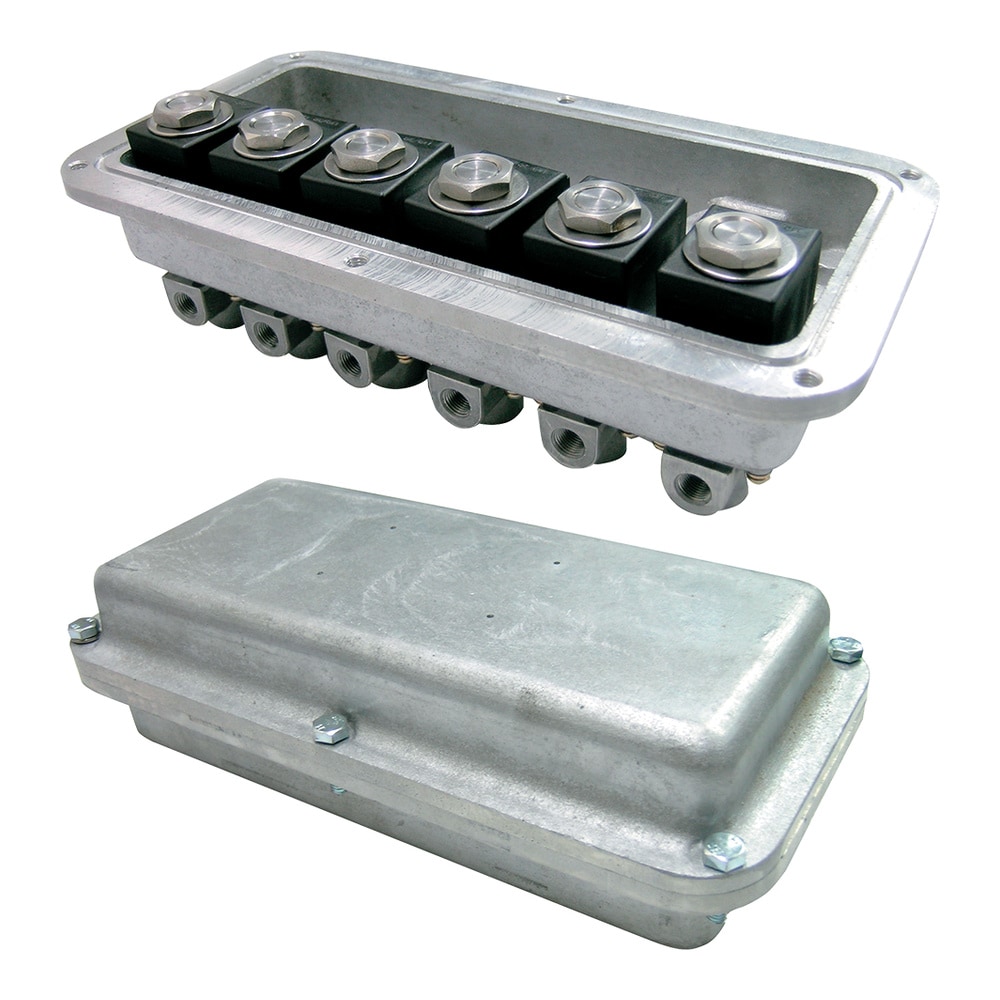

Weatherproof Solenoid Valve Enclosures for RSV, 6/12 Valve, Customizable
- Weatherproof enclosure
- Can order pre-wired to terminal block
- Available in 6 or 12 valve size
Series-SVE
From
C$
0.00
Product Overview
- Conduit Connection 3/4 in NPT Female
- Electrical Connection Screw Terminal
- Enclosure Ratings IP66, NEMA Type 4X
- Enclosure Type Weatherproof
- Materials Aluminum, NBR
- Materials, Wetted Aluminum, Buna-N (NBR), Stainless Steel
- Media Compatibility Argon, Compatible Gases, Nitrogen
- Mounting Orientation Not Position Sensitive
- Operating Temperature, Max 122 °F
- Operating Temperature, Min -4 °F
- Pneumatic Tube Length 9.8' max
- Power Consumption 12 W, inrush: 17 VA, holding: 14.5 VA
- Pressure Limits 4.4 to 124.7 psi
- Process Connection Size 1/8 in
- Process Connection Type NPT Female
- Process Temperature, Max 185 °F
- Process Temperature, Min -4 °F
The Series SVE Solenoid Valve Enclosures are multi-valve enclosures for the RSV pilot valve. The SVE offers a convenient weatherproof enclosure package with all solenoids pre-wired to a terminal block. Enclosures are available in 6 or 12 valve size with choice of pilot valve voltage.
Product Applications
- For use with RSV only, compatible gases
