Series-2000VA-3000WA
High-Flow Control Valves – 50:1 Rangeability – Brass, Iron, SS
Series-2000VA-3000WA
From
$
1,881.25
Product Overview
- Actuator Temperature, Max 150 °F
- Actuator Type Pneumatic Spring/Diaphragm
- Air Connection 1/4 in NPT Female
- Body 2 Way Globe
- Input Control Signal 3 to 15 psi
- Materials PTFE
- Materials, Wetted 316 Stainless Steel
- Media Compatibility Consult Factory
- Operating Temperature, Max 400 °F
- Operating Temperature, Min 20 °F
- Port 1 Type NPT Female
- Port 2 Type NPT Female
- Pressure Type Gauge
- Proof Pressure Up to 250 psi

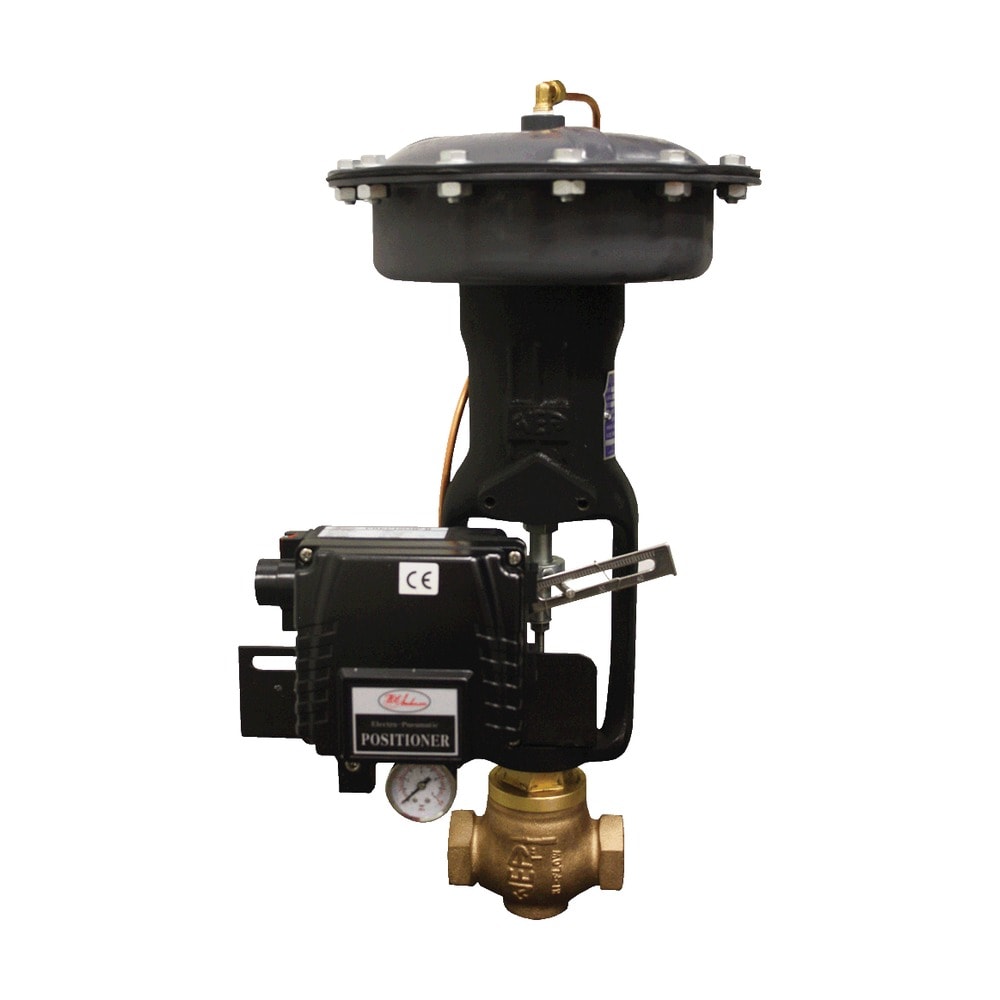

W.E. Anderson Hi-Flow™ control valves are single seated, top or cage guided globe valves - probably the simplest, from construction standpoint, yet most versatile control valve in use. The Hi-Flow™ control valve can fit applications with a smaller size since the valve has a greater flow capacity than most conventional valves of the same size.
Coupled with the high flow capacity, the Hi-Flow™ control valve maintains a wide rangeability of 50:1 to insure precise control. Heavy duty Hi-Flow™ control valves are ruggedly constructed of the highest quality materials, precision machined, and performance tested to assure years of trouble free service. Standard packing consists of PTFE V-rings and wiper to minimize friction without leakage at high operating pressures. Available in brass, iron, 316 SS body, trim is 316 SS with all welded plug construction provide superior durability and corrosion resistance.
Caution: Use of an actuator supply gas other than air can create a hazardous environment because a small amount of gas continuously vents to atmosphere.
California Residents: Click Here for Proposition 65 WARNING.
Product Applications
- Flow control, mixing, or diverting service.
- Perfect for steam, water or compatible glycol solutions.
