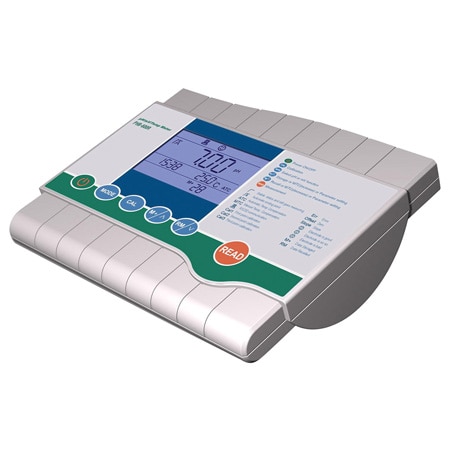

PHB-600R-Series
pH Benchtop Meter with RS232 Communications
Modèles en stock
- Microprocessor-Based Design
- Simultaneous Display of pH and Temperature
- °C/°F Switchable
- Automatic or Manual Temperature Compensation
PHB-600R-Series
Depuis
C$
1 148.45
Modèles en stock
L'aperçu du produit
- Accuracy Detail ORP Accuracy: 1
- Additional Features 1 RS232
- Conductivity Measurement N/A
- Data Interface RS232
- Display Type LCD
- Dissolved Oxygen Range N/A
- Electrical Connection BNC, 9-pin sub-D connector
- Height 65 mm
- Length 200 mm
- Measurement Type pH, Voltage, Temperature
- Memory Card N/A
- Operating Temperature, Max 35 °C
- Operating Temperature, Min 0 °C
- pH Accuracy ± 0.01 pH
- Resolution Note pH Resolution: 0.01, ORP Resolution: 1
- Salinity Range N/A
- Salt Range N/A
- Software Windows Compatible (included)
- Storage Capacity 64 Readings
- Supply Voltage 9 Vdc
- Temperature Accuracy ± 0.1 °C
- Temperature Compensation 0 to 100 °C
- Temperature Measurement, Max 105 °C
- Temperature Measurement, Min -5 °C
- Temperature Resolution 0.1 °C
- Total Dissolved Solids Range N/A
- Weight 650 g
- Width 160 mm
With its built-in microprocessor, the PHB-600R precisely measures pH and mV in water solutions. This makes it suitable for laboratory, industrial, and manufacturing applications.
SPECIFICATIONS
Accuracy/Range/Resolution:
Temp Compensation: ATC 0 to 100 °C (32 to 212 °F)
Storage Capacity: 64 readings
Communications: RS232 interface
RS232 Connection: 9-pin sub-D connector
Software: Windows compatible (included)
Power: 110 to 9 Vac adaptor (included)
Dimensions: 200 L x 160 W x 65 mm D (7.8 x 6.3 x 2.6")
Weight: 650 g (1.4 lb)
Operating Environment: 0 to 35 °C (32 to 95 °F); <85% RH
pH Connection: BNC
SPECIFICATIONS
Accuracy/Range/Resolution:
| Measurement | Range | Resolution | Accuracy |
|---|---|---|---|
| pH | 0 to 14 | 0.01 | 0.01 |
| mV | ±2000 | 1 | 1 |
| Temp ( ºF) | 23 to 221 | 0.1 | 0.2 |
| Temp ( ºC) | -5 to -105 | 0.1 | 0.1 |
Storage Capacity: 64 readings
Communications: RS232 interface
RS232 Connection: 9-pin sub-D connector
Software: Windows compatible (included)
Power: 110 to 9 Vac adaptor (included)
Dimensions: 200 L x 160 W x 65 mm D (7.8 x 6.3 x 2.6")
Weight: 650 g (1.4 lb)
Operating Environment: 0 to 35 °C (32 to 95 °F); <85% RH
pH Connection: BNC
PDF et manuels
Afficher les notes et les avis
Can you get a test tube probe for this meter, we need something that will fit in a small test tube
Thank you for your inquiry about the pH benchtop meter. The PHE-1478 pH electrode is the shortest in length at 140mm and if you need a thinner style, then, the PHE-1524 can accommodate.
Date published: 2021-12-10
Will this meter continuously monitor a flow stream?
This meter is not meant for monitoring pH in a stream. It is more a laboratory style to measure pH.
Date published: 2019-11-16
How long is the active life? Also is there an extended warranty that can be purchased?
Thank you for your inquiry about the pH benchtop meter. The pH meter has an active life of a few years and unfortunately, there is no extended warranty available to purchase.
Date published: 2022-10-10
